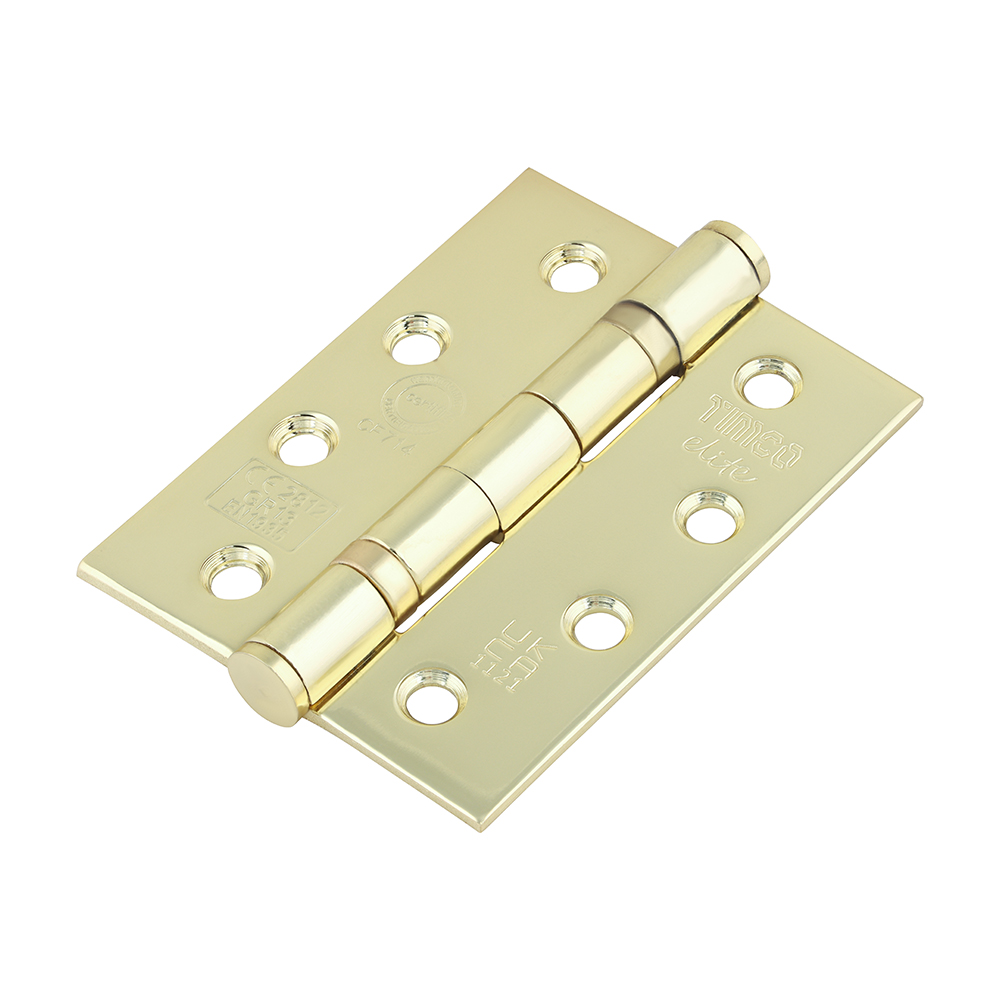

Timco Grade 13 Fire Door Hinges – Electro Brass Stainless Steel – 101 x 76 x 3 – Box of 2 – 334027

£7.38 £6.15 Ex VAT

Designed for use on heavy duty fire doors in public buildings. Lubricated ball bearing washers provide a lifetime of smooth door operation making them ideal for use with door closers as they reduce closing friction. Fixings included. *Fit with intumescent hinge pads (not included, sold separately product code 487385) when fitting fire doors to adhere to fire regulations.

• Smooth ball bearing action
• Suitable for 30 & 60 minute fire doors weighing up to 120kg
• For doors with heavy traffic – tested to 200,000 cycles
• CE Approved – BS EN 1935

680 in stock

Description

  • Pack Qty 2
    Pack Type Box
    BS EN Classification 476114013
    CE Standard BS EN 1935:2002
    Certifire Number CF714
    Corner Type Square
    Corrosion Rating (1-5) 3 – Urban & industrial areas with a low salt atmosphere
    Finish Electro Brass
    Fire Rating 30 & 60 Minutes
    Grade 13
    Knuckle Type Ball Bearing
    L (mm) 101
    Length x Width (mm) 101 x 76
    Material Stainless Steel
    No. Of CSK Screws 16
    Pack Dimensions L x W x H (mm) 162 x 58 x 26
    Pack Weight (kg) 0.56
    Rec. Screw Gauge (imp.) 10
    Rec. Screw Ø (mm) 5
    Screw Size (imp.) 10 x 1 1/4
    Screw Size (mm) 5.0 x 30
    Thickness (mm) 3

Additional information

Weight 0.56 kg
