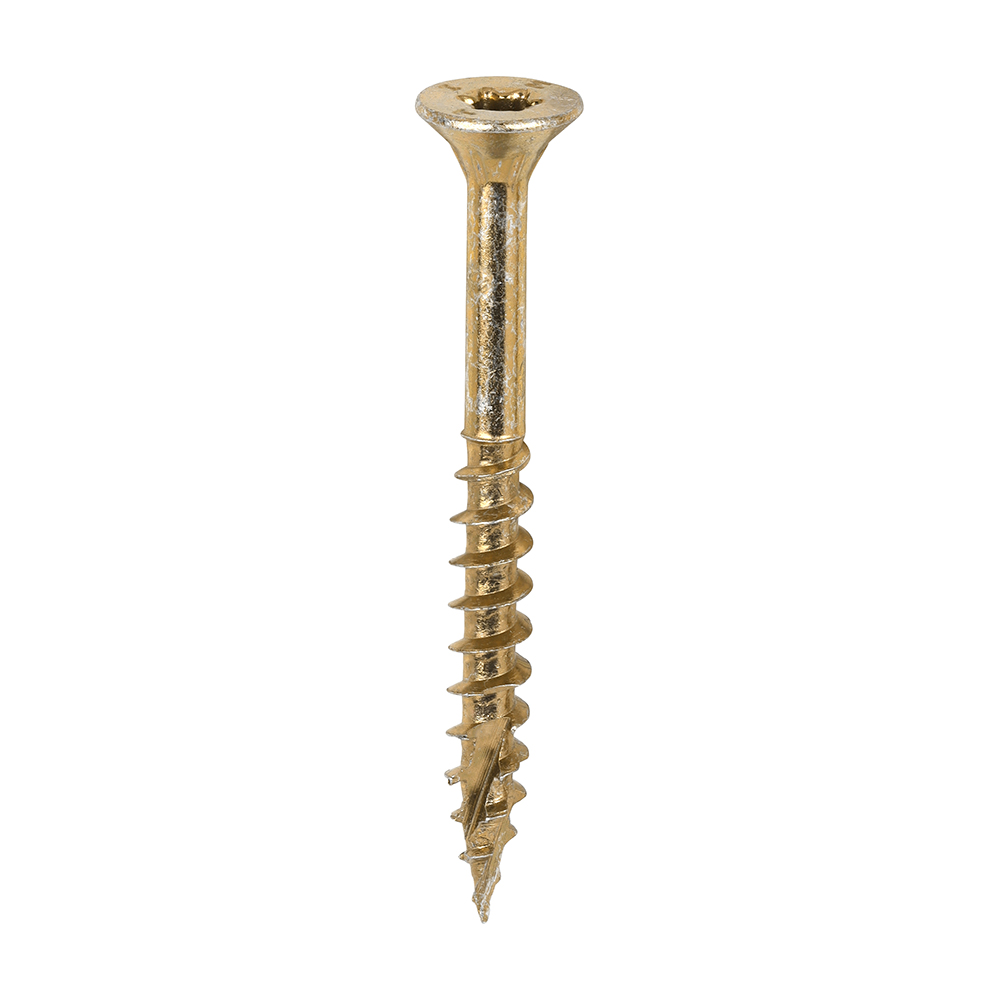

Timco C2 Clamp-Fix Multi-Purpose Premium Screws – Yellow 5.0 x 50 – TX – Double Countersunk – Box of 200 – 50050C2C

£6.25 £5.21 Ex VAT

A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework.

• Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid “pick-up” and reduces timber splitting
• Partially threaded from 40mm

1000 in stock

SKU: 50050C2C Category:

Description

  • Pack Type Box
    Pack Qty 200
    Lubrication Wax
    CE Standard BS EN 14592:2008
    Driver Bit Size TX25
    L (mm) 50
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
    Finish Zinc & Yellow
    Thread L (mm) 30
    Material Carbon Steel
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    Size (mm) 5.0 x 50
    Gauge 10
    Point Type Twin-Cut
    Thread Ø (mm) 5
    Thread Type 40° Single
    Max. CFT (mm) 20
    Inner Thread Ø d1 (mm) 2.95
    Head Ø (mm) 9.7
    Recess Type TX Drive
    L (inch) 2
    Size (imp.) 10 x 2
    Brand TIMCO
    Feature 1 Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
    Feature 3 Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
    Feature 5 Patented twin cut technology for rapid “pick-up” and reduces timber splitting
    Feature 2 Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
    Feature 6 Partially threaded from 40mm
    Thread Coverage Partially Threaded
    Pack Weight (kg) 0.9
    Pack Dimensions L x W x H (mm) 138 x 92 x 60
    Feature 4 Dual angle thread for ultimate performance and exceptionally high pull-out resistance
    Head Type Double Countersunk with Ribs
    Included Items TX25 25mm Power Bits (Qty 1)

Additional information

Weight 0.86 kg
