Timco C2 Clamp-Fix Multi-Purpose Premium Screws – Yellow 5.0 x 70 – TX – Double Countersunk – Tub of 375 – 50070C2CTUB

£19.98 £16.65 Ex VAT

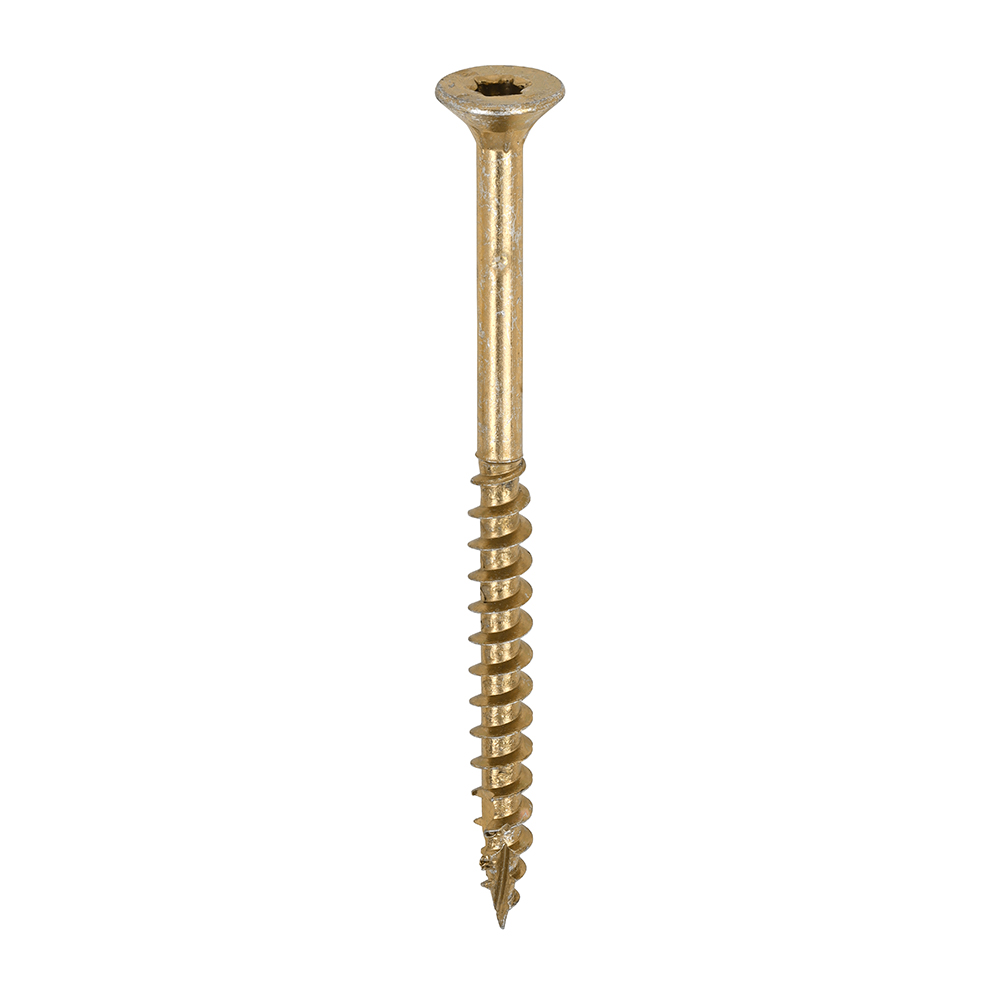

A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework.

• Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid “pick-up” and reduces timber splitting
• Partially threaded from 40mm

650 in stock

SKU: 50070C2CTUB Category:

Description

  • Pack Type Tub
    Pack Qty 375
    Size (mm) 5.0 x 70
    Lubrication Wax
    L (inch) 34
    Max. CFT (mm) 30
    Thread L (mm) 40
    Driver Bit Size TX25
    Finish Zinc & Yellow
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
    Material Carbon Steel
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    CE Standard BS EN 14592:2008
    Point Type Twin-Cut
    Gauge 10
    Size (imp.) 10 x 2 34
    Thread Ø (mm) 5
    Thread Type 40° Single
    Inner Thread Ø d1 (mm) 2.95
    Head Ø (mm) 9.7

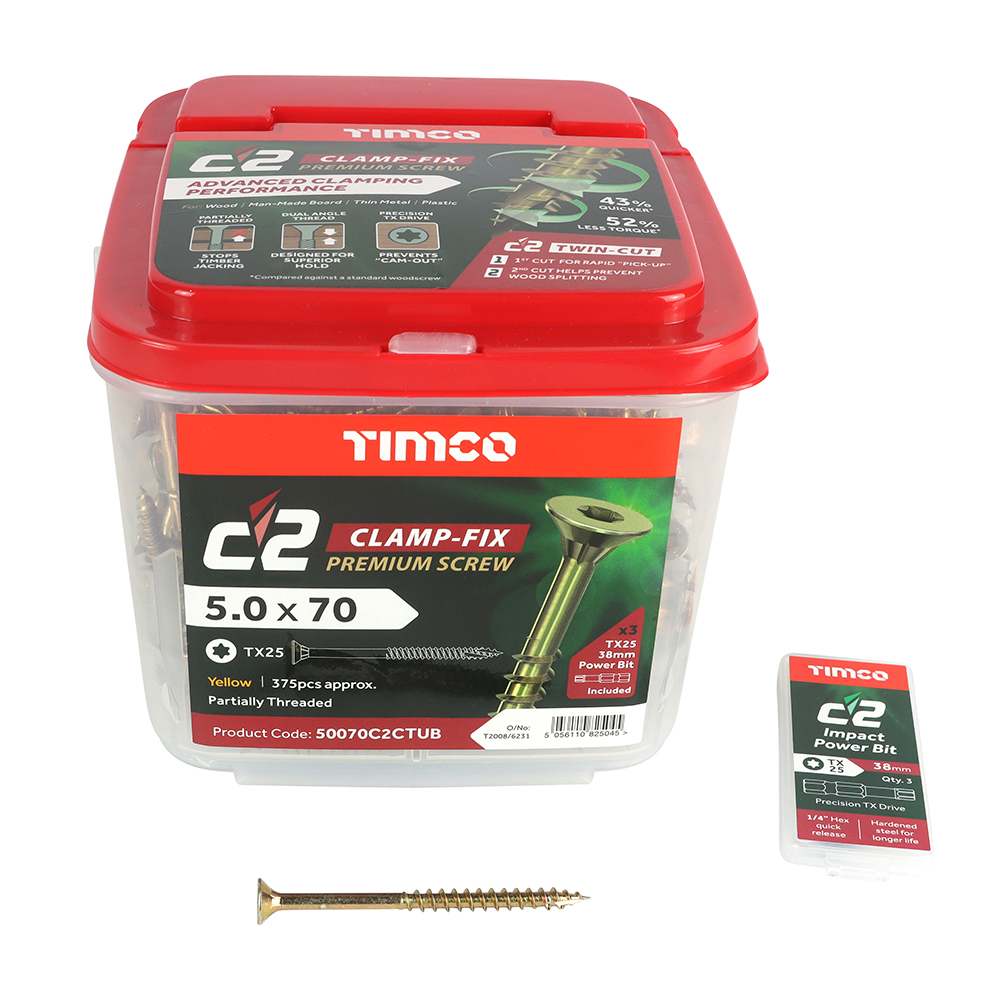

    Included Items TX25 38mm Power Bits (Qty 3)
    Recess Type TX Drive
    L (mm) 70
    Brand TIMCO
    Feature 1 Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
    Feature 2 Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
    Feature 3 Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
    Feature 4 Dual angle thread for ultimate performance and exceptionally high pull-out resistance
    Feature 5 Patented twin cut technology for rapid “pick-up” and reduces timber splitting
    Feature 6 Partially threaded from 40mm
    Thread Coverage Partially Threaded
    Pack Weight (kg) 2.374
    Head Type Double Countersunk with Ribs
    Pack Dimensions L x W x H (mm) 160 x 140 x 118

Additional information

Weight 2.278 kg
