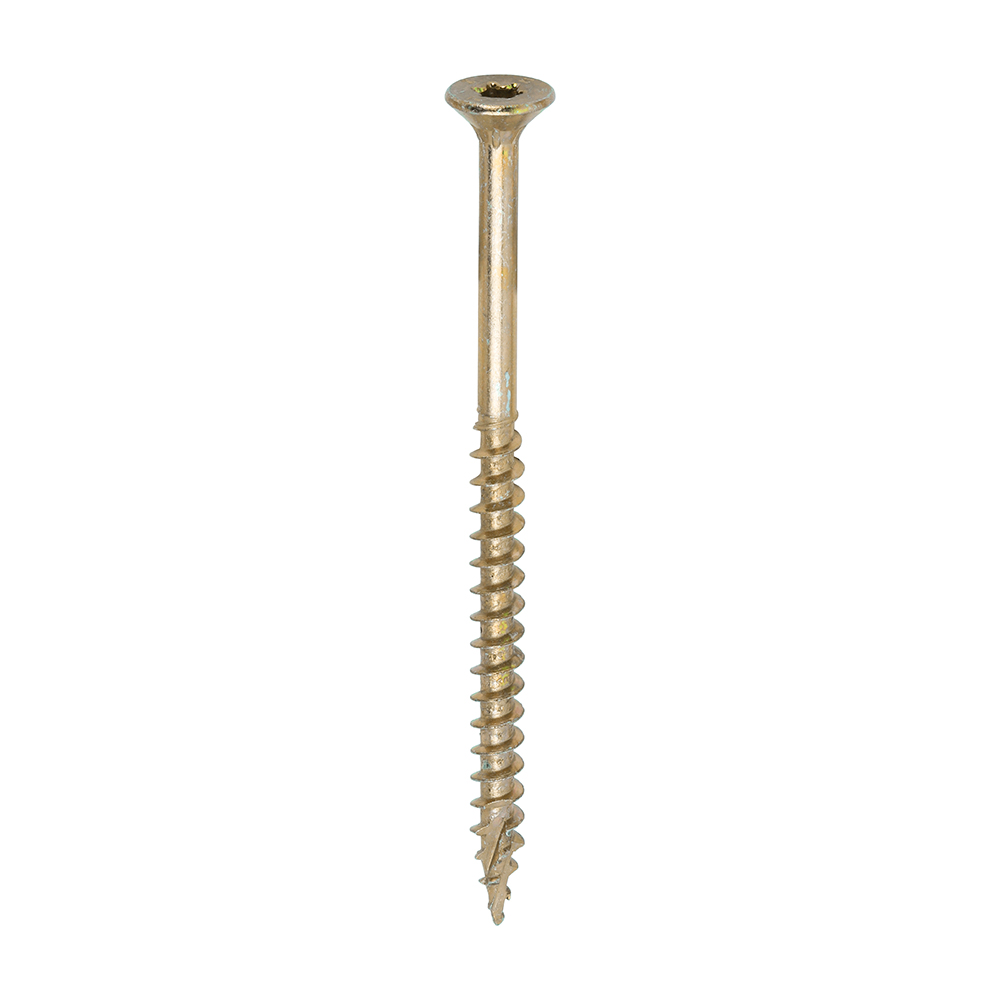

Timco C2 Clamp-Fix Multi-Purpose Premium Screws – Yellow 5.0 x 80 – TX – Double Countersunk – Box of 200 – 50080C2C

£10.48 £8.73 Ex VAT

A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework.

• Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid “pick-up” and reduces timber splitting
• Partially threaded from 40mm

2900 in stock

SKU: 50080C2C Category:

Description

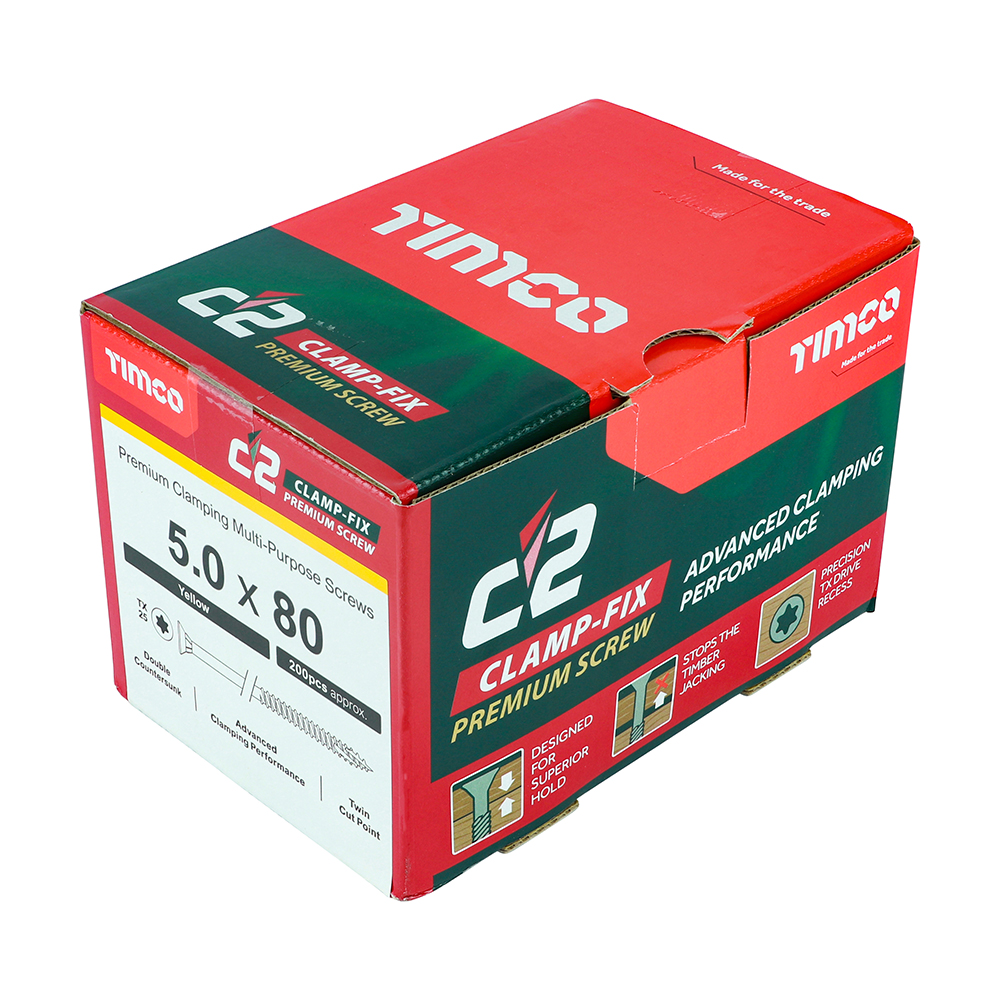

  • Pack Type Box
    Pack Qty 200
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
    Size (imp.) 10 x 3
    Thread L (mm) 50
    L (inch) 3
    Pack Dimensions L x W x H (mm) 135 x 90 x 90
    Finish Zinc & Yellow
    L (mm) 80
    Driver Bit Size TX25
    Lubrication Wax
    Point Type Twin-Cut
    Material Carbon Steel
    Recess Type TX Drive
    Max. CFT (mm) 30
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    Gauge 10
    Pack Weight (kg) 1.237
    Thread Ø (mm) 5
    CE Standard BS EN 14592:2008
    Head Ø (mm) 9.7
    Thread Type 40° Single
    Size (mm) 5.0 x 80
    Inner Thread Ø d1 (mm) 2.95
    Feature 2 Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
    Feature 5 Patented twin cut technology for rapid “pick-up” and reduces timber splitting
    Feature 1 Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
    Feature 3 Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
    Brand TIMCO
    Feature 6 Partially threaded from 40mm
    Thread Coverage Partially Threaded
    Feature 4 Dual angle thread for ultimate performance and exceptionally high pull-out resistance
    Head Type Double Countersunk with Ribs
    Included Items TX25 25mm Power Bits (Qty 1)

Additional information

Weight 1.237 kg
