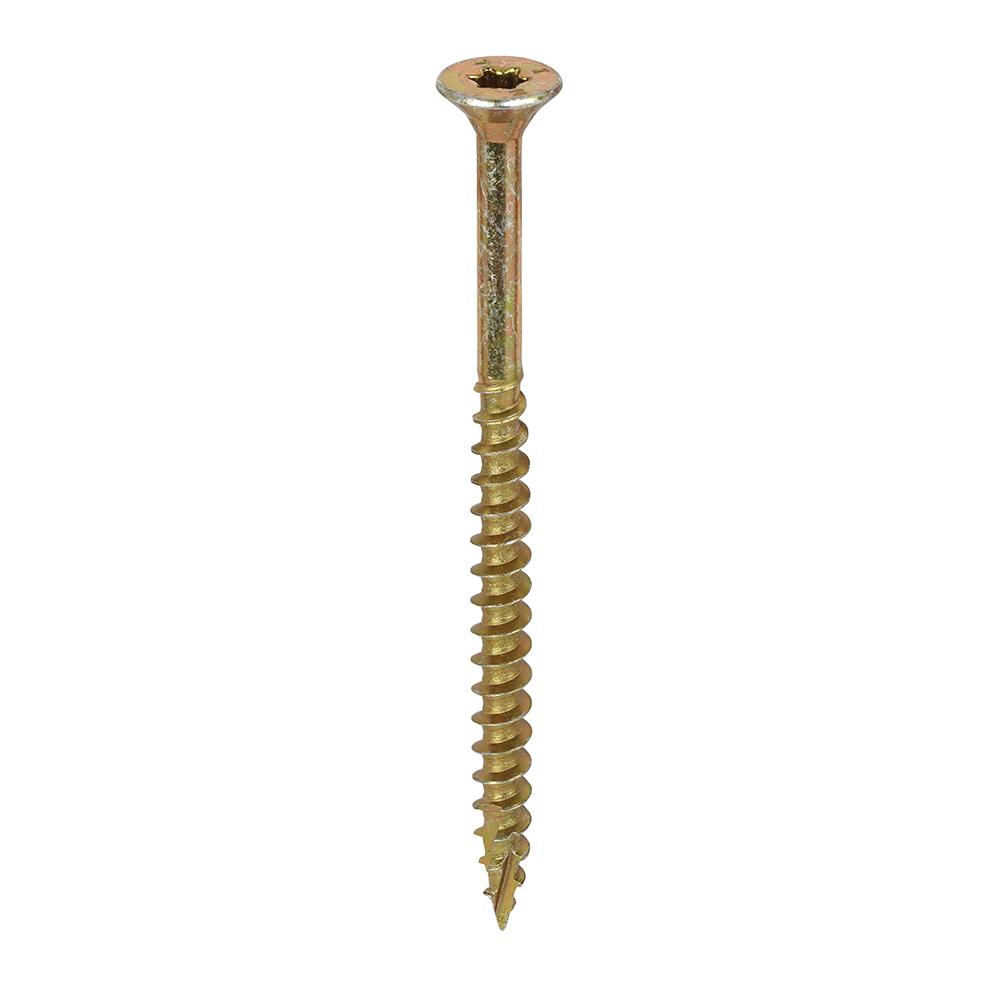

Timco C2 Clamp-Fix Multi-Purpose Premium Screws – Yellow 6.0 x 90 – TX – Double Countersunk – Box of 100 – 60090C2C

£8.38 £6.98 Ex VAT

A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle partial thread and high torque TX drive ensures maximum clamping strength on every fixing. Designed to prevent the timber from ‘jacking’ apart when fastening timber to timber. Ideal for applications such as timber studwork, panelling, roof and decking framework.

• Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Dual angle thread for ultimate performance and exceptionally high pull-out resistance
• Patented twin cut technology for rapid “pick-up” and reduces timber splitting
• Partially threaded from 40mm

280 in stock

SKU: 60090C2C Category:

Description

  • Pack Type Box
    Pack Qty 100
    Finish Zinc & Yellow
    Size (imp.) 12 x 3 12
    Lubrication Wax
    L (mm) 90
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
    Point Type Twin-Cut
    Thread Ø (mm) 6
    Gauge 12
    Material Carbon Steel
    Max. CFT (mm) 30
    Head Ø (mm) 11.65
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    Size (mm) 6.0 x 90
    L (inch) 12
    CE Standard BS EN 14592:2008
    Thread Type 40° Single
    Inner Thread Ø d1 (mm) 3.65
    Driver Bit Size TX30
    Recess Type TX Drive
    Thread L (mm) 60
    Feature 5 Patented twin cut technology for rapid “pick-up” and reduces timber splitting
    Feature 3 Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
    Feature 6 Partially threaded from 40mm
    Feature 2 Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
    Brand TIMCO
    Feature 1 Precision TX drive recess to prevent ‘cam-out’, giving a precise and positive drive control on every screw
    Thread Coverage Partially Threaded
    Pack Weight (kg) 1.08
    Pack Dimensions L x W x H (mm) 136 x 94 x 62
    Feature 4 Dual angle thread for ultimate performance and exceptionally high pull-out resistance
    Head Type Double Countersunk with Ribs
    Included Items TX30 25mm Power Bits (Qty 1)

Additional information

Weight 1.08 kg
