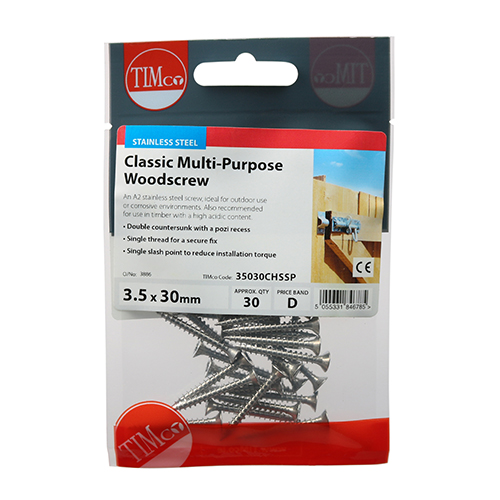

Timco Classic Multi-Purpose Screws – 3.5 x 30 – PZ – Double Countersunk – Stainless Steel – TIMpac of 30 – 35030CHSSP

£2.09 £1.74 Ex VAT

All the features and superior performance of the Classic Multi-Purpose Screw manufactured from A2 Stainless Steel. Ideal where ultimate corrosion resistance is required when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

87 in stock

SKU: 35030CHSSP Category:

Description

  • Pack Type TIMpac
    Pack Qty 30
    Brand TIMCO
    Corrosion Rating (1-5) 4 – Urban & industrial areas with a moderate salt atmosphere
    Driver Bit Size PZ2
    Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    Feature 2 40° deep single thread to provide a secure fixing with high pull-out resistance
    Feature 3 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
    Feature 4 Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    Feature 5 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
    Head Ø (mm) 6.68
    Head Type Double Countersunk
    Inner Thread Ø d1 (mm) 2.25
    L (inch) 14
    L (mm) 30
    Material Austenitic Stainless Steel (A2-304)
    Pack Dimensions L x W x H (mm) 15 x 90 x 133
    Pack Weight (kg) 0.04
    Point Type 25° Sharp with Single Slash
    Recess Type Pozi
    Size (imp.) 6 x 1 14
    Size (mm) 3.5 x 30
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
    Thread Coverage Fully Threaded
    Thread L (mm) 25
    Thread Ø (mm) 3.5
    Thread Type Single Coarse 40°

Additional information

Weight 0.04 kg
