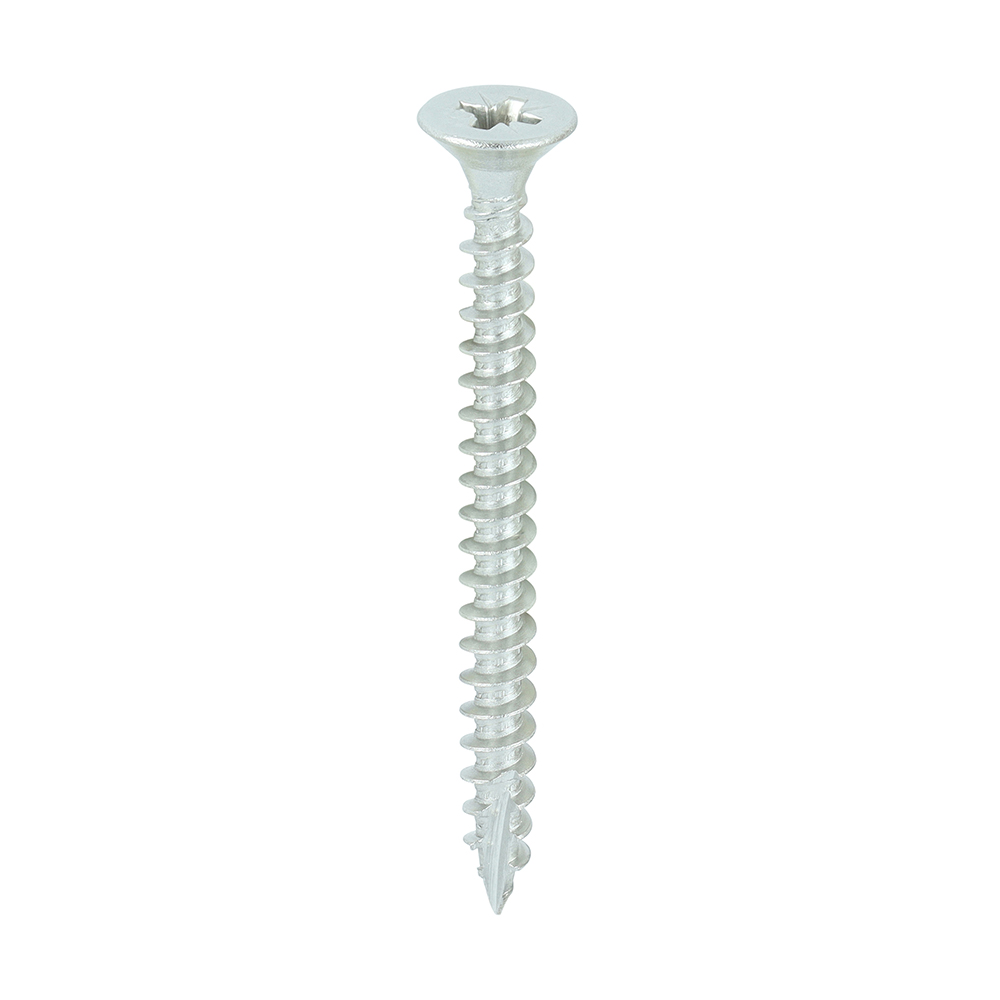

Timco Classic Multi-Purpose Screws – 4.5 x 50 – PZ – Double Countersunk – A2 Stainless Steel – Box of 200 – 45050CLASS

Description

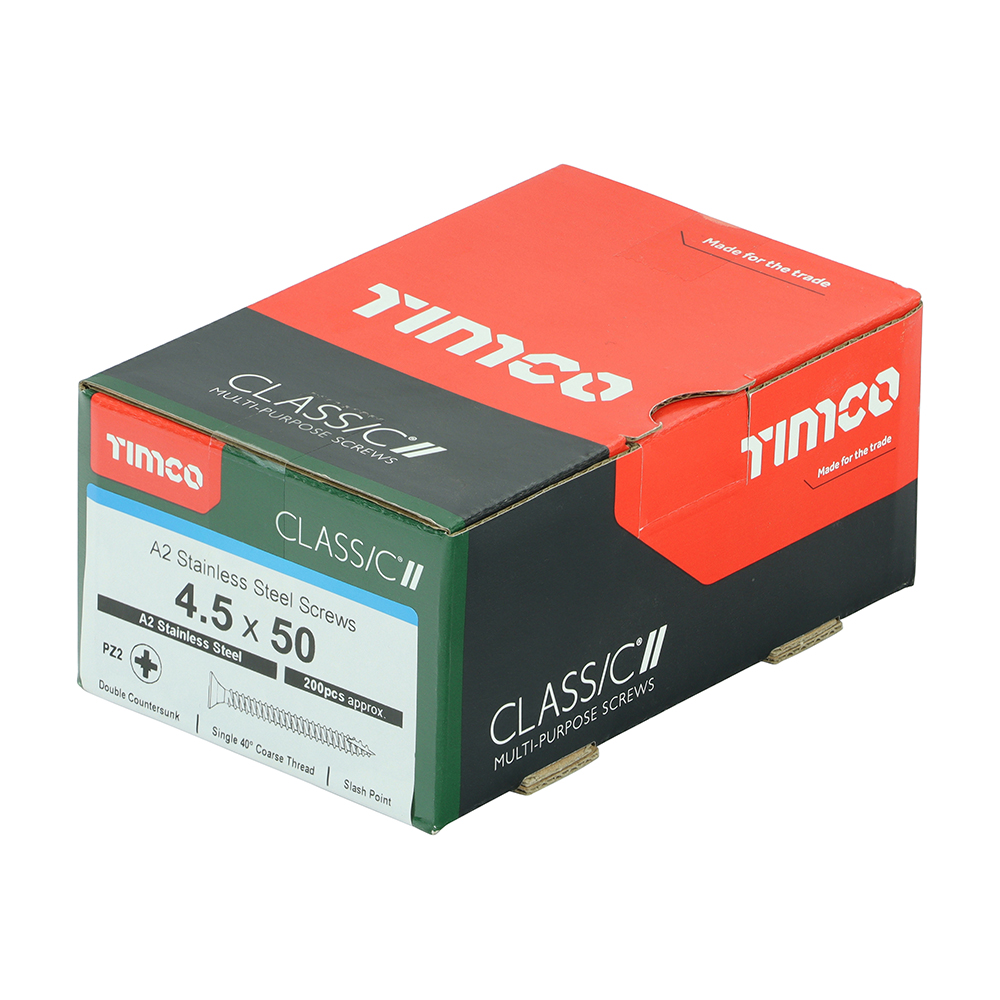

• Pack Type	Box
  Pack Qty	200
  Size (mm)	4.5 x 50
  Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
  Material	Austenitic Stainless Steel (A2-304)
  Pack Dimensions L x W x H (mm)	135 x 90 x 60
  Thread Type	Single Coarse 40°
  Corrosion Rating (1-5)	4 – Urban & industrial areas with a moderate salt atmosphere
  Thread L (mm)	45
  Thread Ø (mm)	4.5
  Head Ø (mm)	8.76
  Recess Type	Pozi
  L (mm)	50
  L (inch)	2
  Inner Thread Ø d1 (mm)	2.7
  Size (imp.)	9 x 2
  Pack Weight (kg)	0.68
  Head Type	Double Countersunk
  Driver Bit Size	PZ2
  Point Type	25° Sharp with Single Slash
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Feature 2	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 3	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  Feature 4	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  Thread Coverage	Fully Threaded
  Brand	TIMCO
