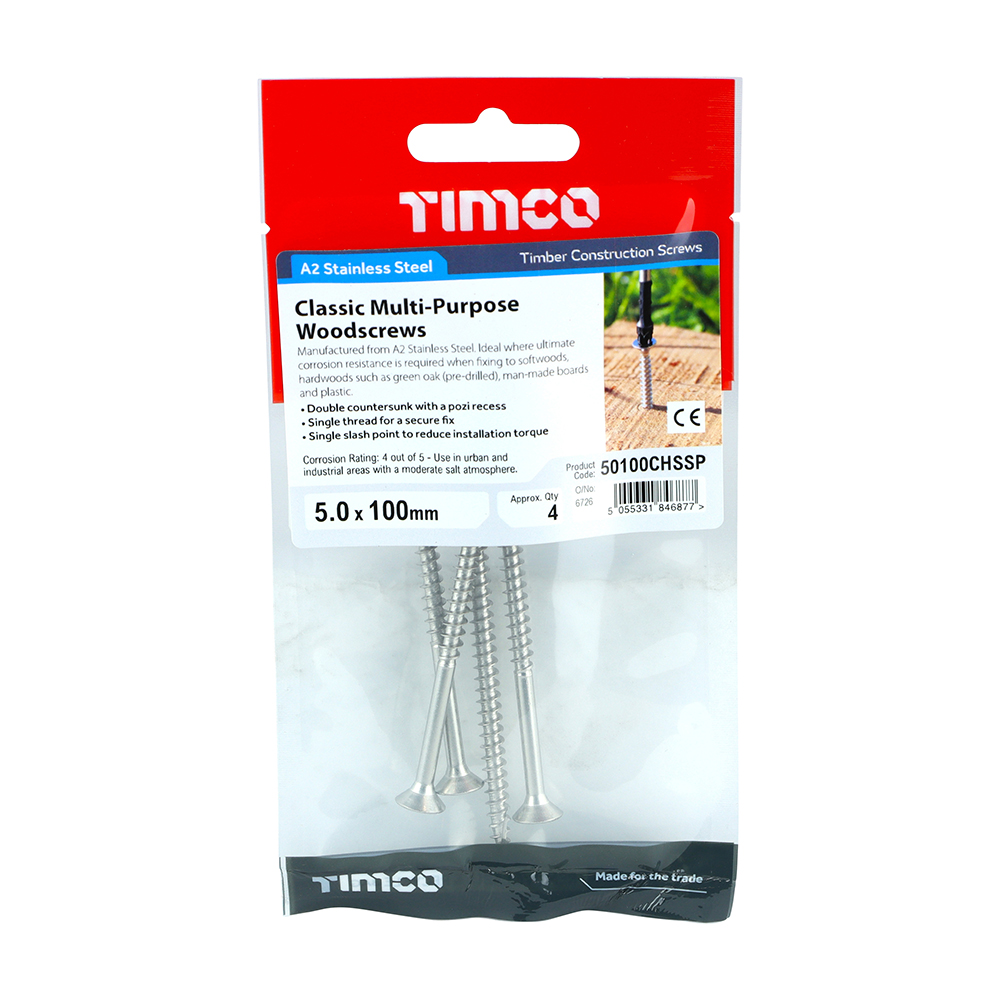

Timco Classic Multi-Purpose Screws – 5.0 x 100 – PZ – Double Countersunk – Stainless Steel – TIMpac of 4 – 50100CHSSP

Description

• Pack Type	TIMpac
  Pack Qty	4
  Point Type	25° Sharp with Single Slash
  Thread L (mm)	70
  L (mm)	100
  Driver Bit Size	PZ2
  Pack Weight (kg)	0.036
  Pack Dimensions L x W x H (mm)	15 x 90 x 163
  Size (mm)	5.0 x 100
  Inner Thread Ø d1 (mm)	3.1
  Material	Austenitic Stainless Steel (A2-304)
  Recess Type	Pozi
  L (inch)	4
  Head Type	Double Countersunk
  Size (imp.)	10 x 4
  Thread Type	Single Coarse 40°
  Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
  Head Ø (mm)	9.74
  Corrosion Rating (1-5)	4 – Urban & industrial areas with a moderate salt atmosphere
  Thread Ø (mm)	5
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Feature 2	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 3	Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
  Feature 4	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  Feature 5	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  Brand	TIMCO
  Thread Coverage	Partially Threaded
