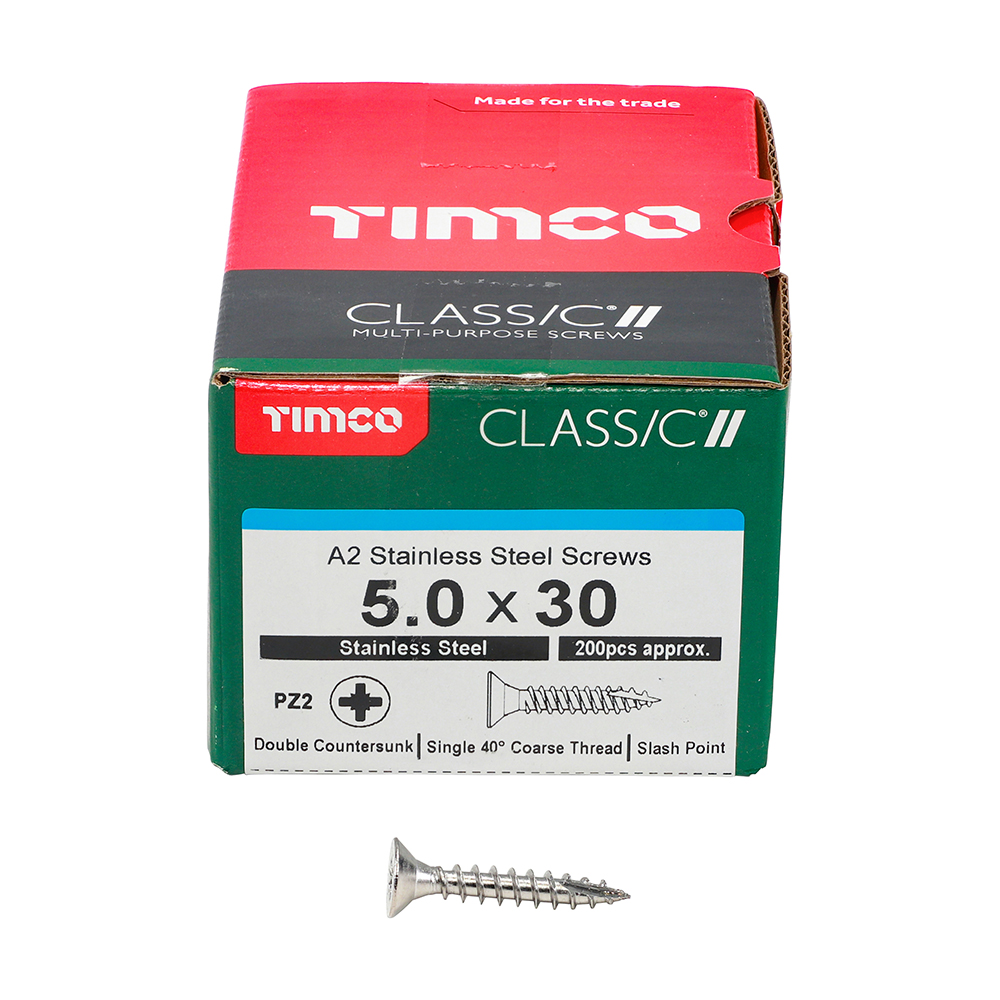

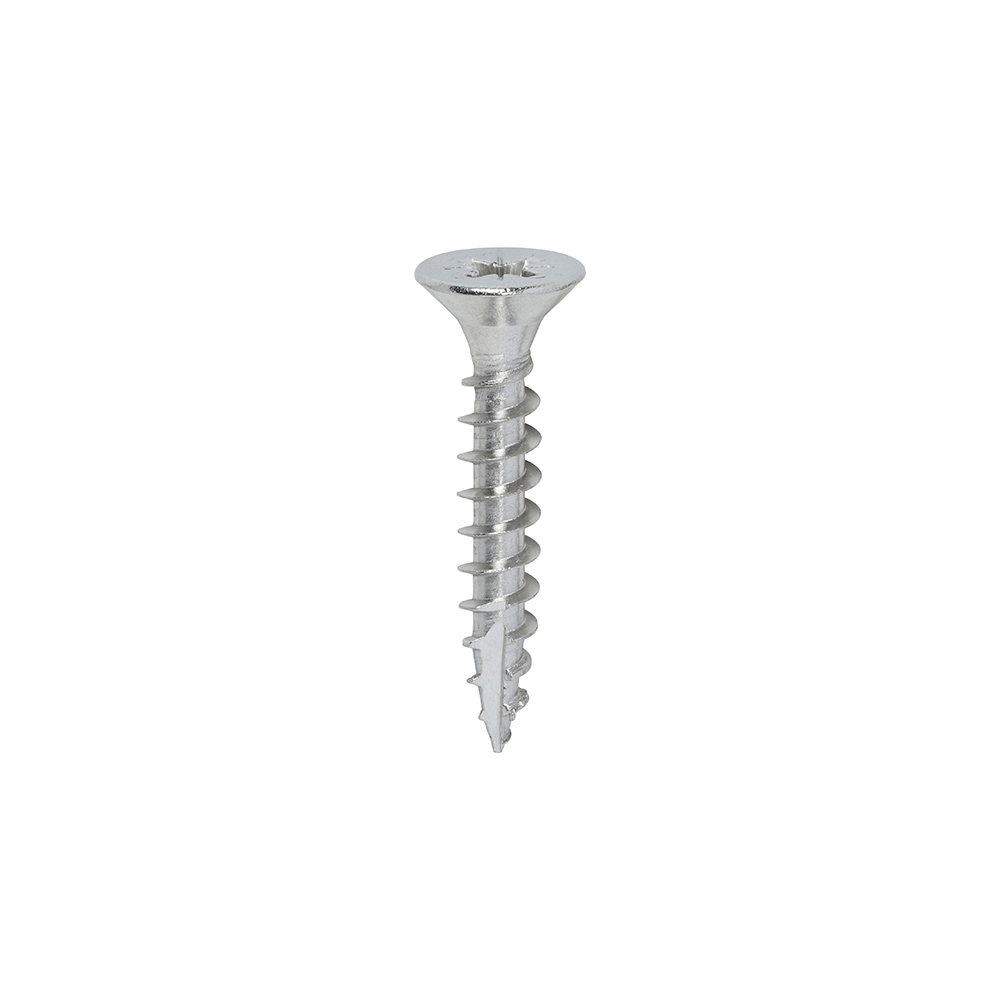

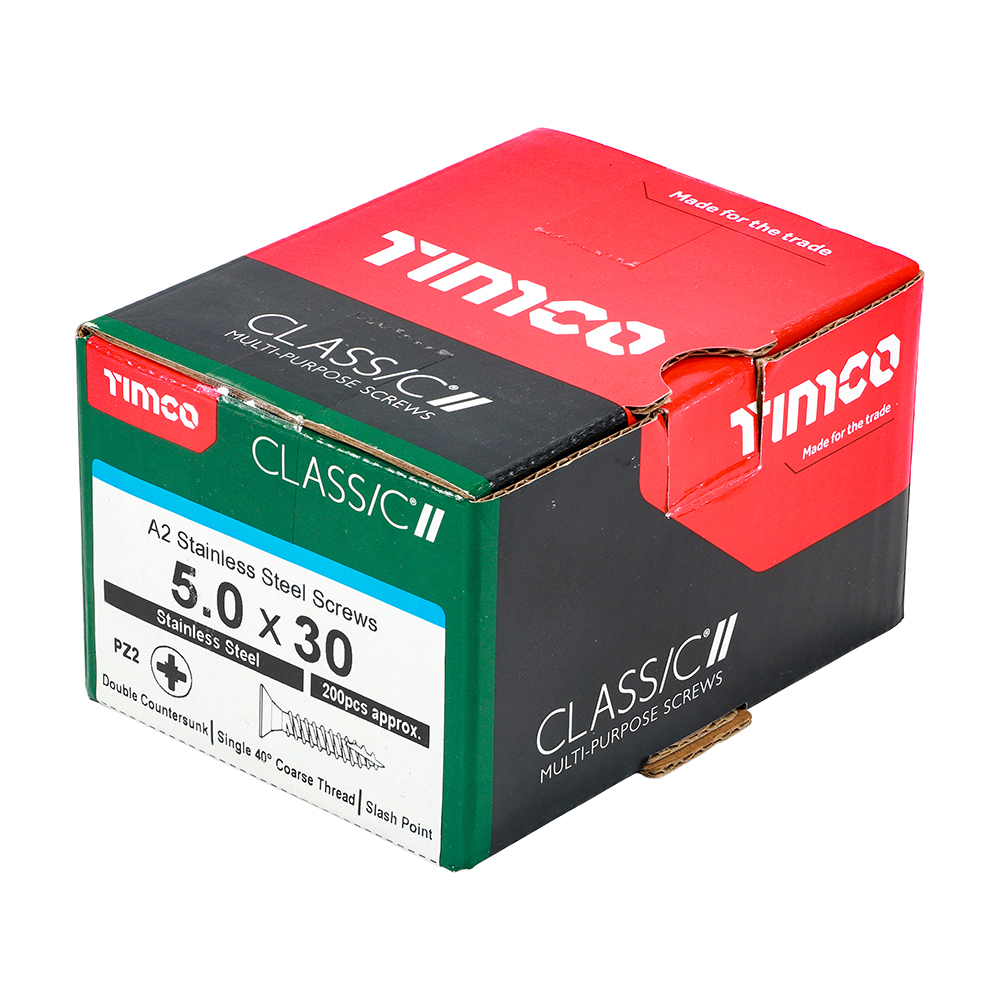

Timco Classic Multi-Purpose Screws – 5.0 x 30 – PZ – Double Countersunk – A2 Stainless Steel – Box of 200 – 50030CLASS

Description

• Pack Type	Box
  Pack Qty	200
  Driver Bit Size	PZ2
  Head Ø (mm)	9.74
  Thread Type	Single Coarse 40°
  Material	Austenitic Stainless Steel (A2-304)
  Point Type	25° Sharp with Single Slash
  Size (mm)	5.0 x 30
  Inner Thread Ø d1 (mm)	3.1
  Pack Dimensions L x W x H (mm)	92 x 72 x 58
  Head Type	Double Countersunk
  Corrosion Rating (1-5)	4 – Urban & industrial areas with a moderate salt atmosphere
  L (mm)	30
  Recess Type	Pozi
  Thread L (mm)	25
  Thread Ø (mm)	5
  Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
  Size (imp.)	10 x 1 1⁄4
  Pack Weight (kg)	0.54
  L (inch)	1 1⁄4
  Brand	TIMCO
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Feature 2	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 3	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  Feature 4	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  Thread Coverage	Fully Threaded
