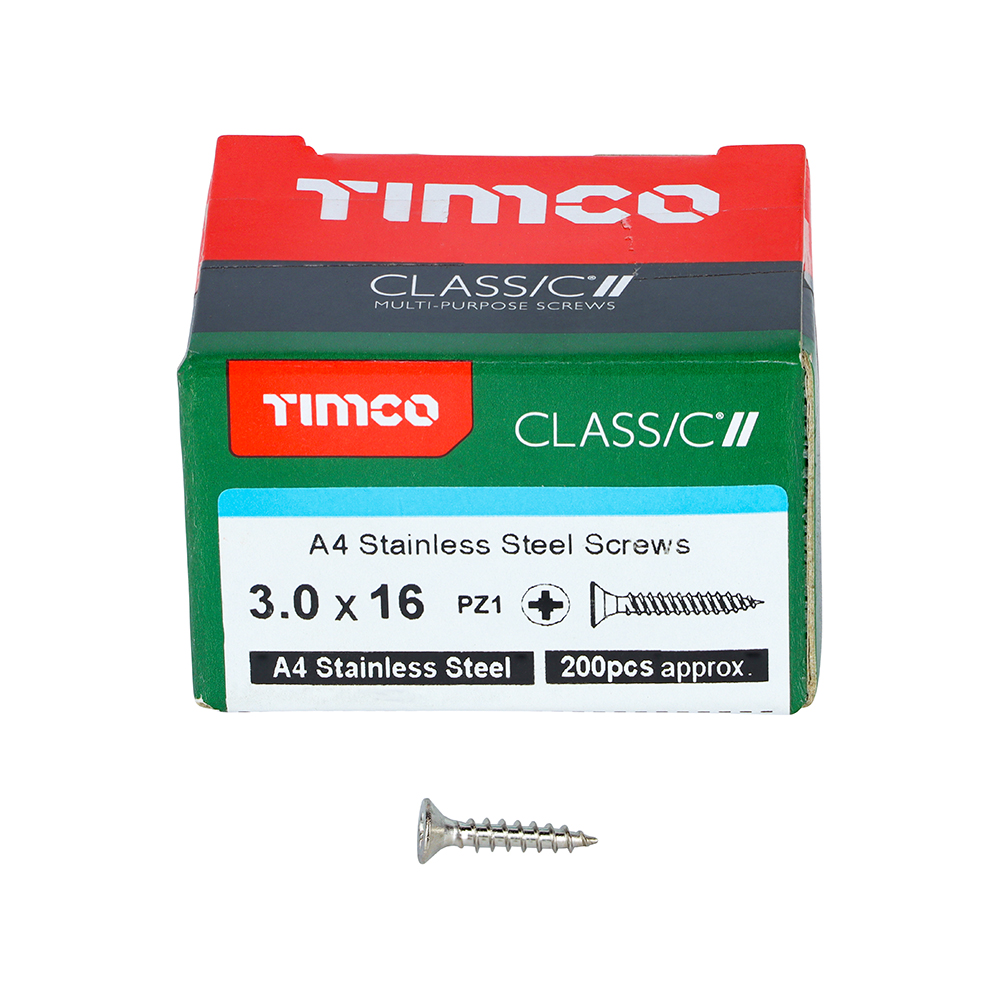

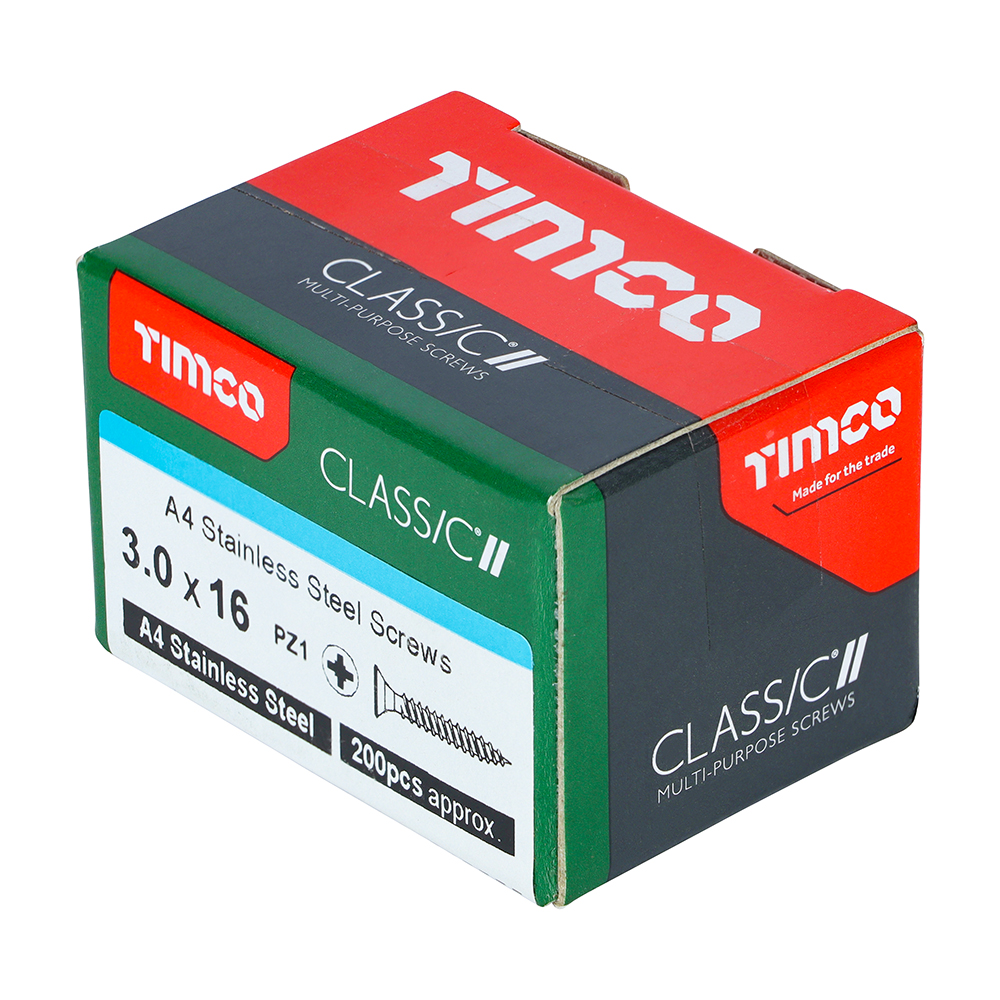

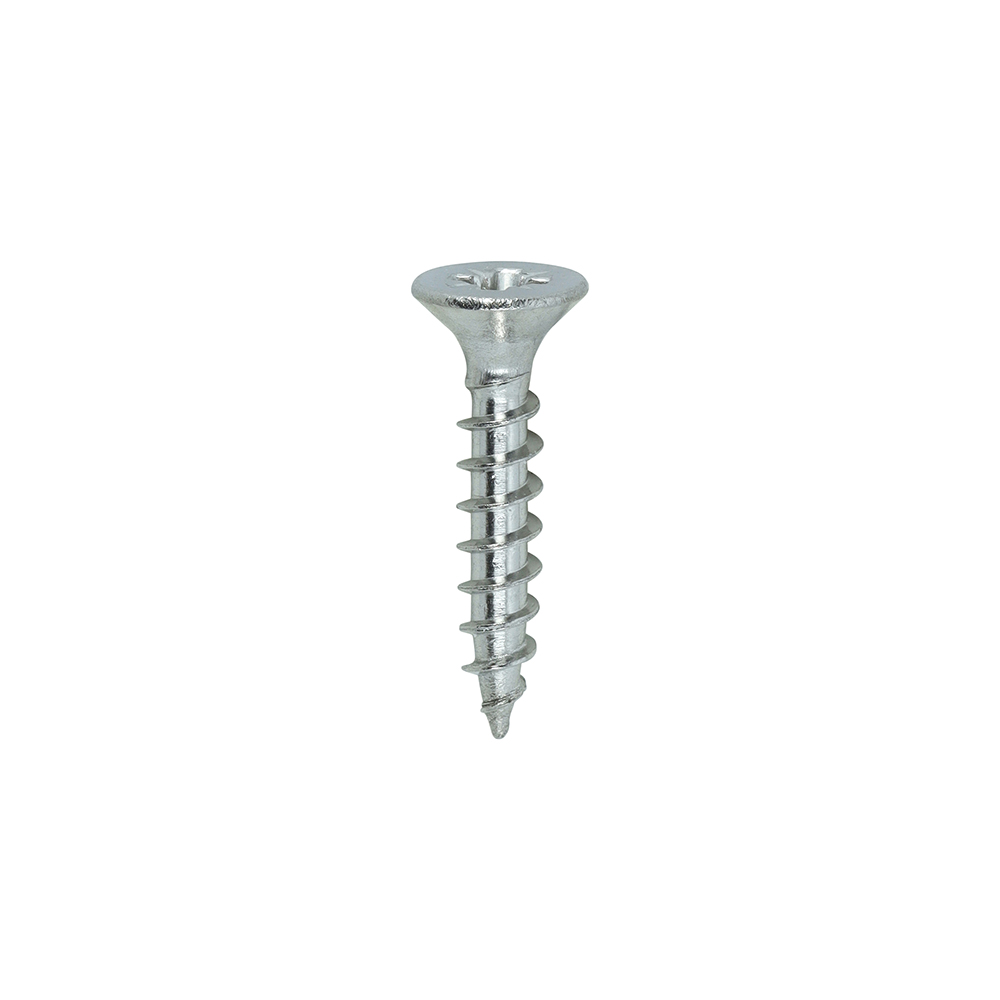

Timco Classic Multi-Purpose Screws – 3.0 x 16 – PZ – Double Countersunk – A4 Stainless Steel – Box of 200 – 30016CLA4

Description

• Pack Type	Box
  Pack Qty	200
  Thread Type	Single Coarse 40°
  Pack Dimensions L x W x H (mm)	55 x 40 x 36
  CE Standard	BS EN 14592:2008
  Thread Ø (mm)	3
  Recess Type	Pozi
  Material	A4 Stainless Steel
  Pack Weight (kg)	0.118
  Point Type	25° Sharp
  Thread L (mm)	11
  Gauge	4
  Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
  Inner Thread Ø d1 (mm)	2
  Head Type	Double Countersunk
  Size (mm)	3.0 x 16
  Corrosion Rating (1-5)	5 – Industrial & coastal areas with an aggressive salt atmosphere
  Driver Bit Size	PZ1
  Size (imp.)	4 x 5⁄8
  Head Ø (mm)	5.82
  Thread Coverage	Fully Threaded
  L (inch)	5⁄8
  L (mm)	16
  Brand	TIMCO
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Feature 2	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 3	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  Feature 4	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
