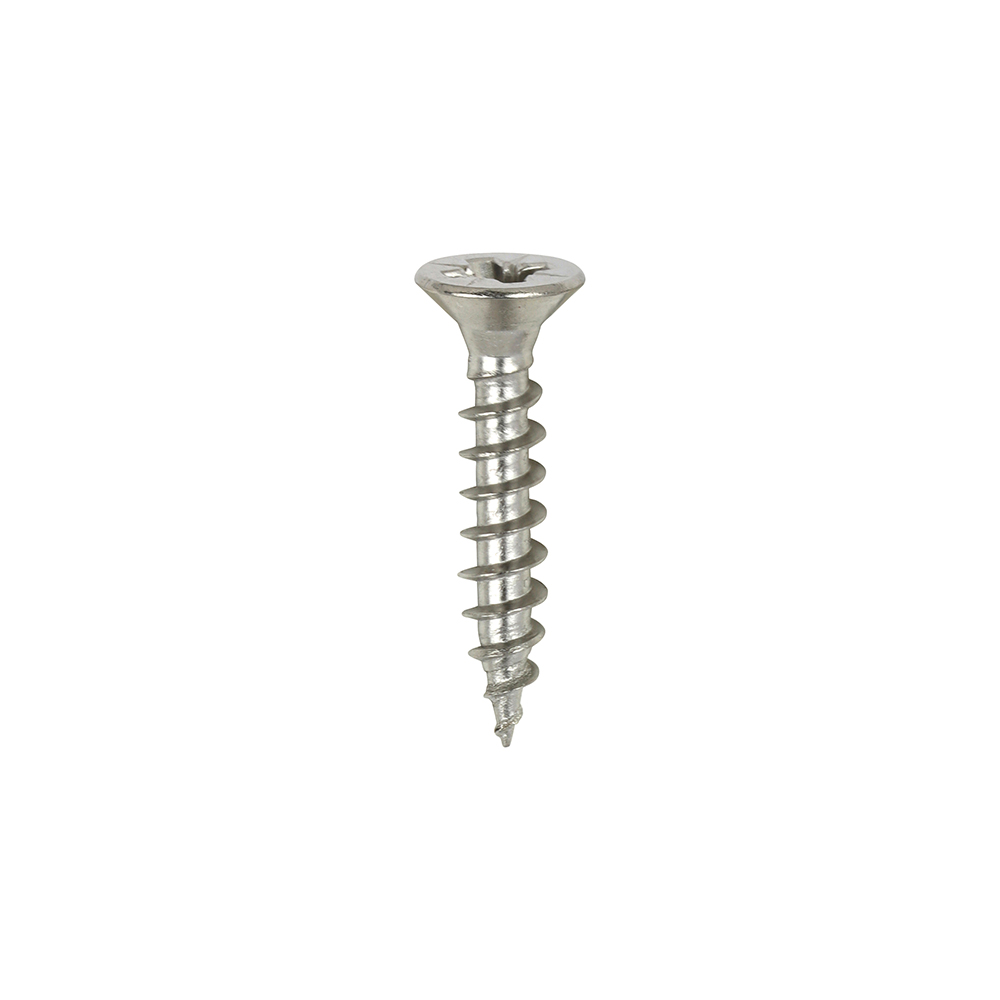

Timco Classic Multi-Purpose Screws – 3.5 x 20 – PZ – Double Countersunk – A4 Stainless Steel – Box of 200 – 35020CLA4

£6.83 £5.69 Ex VAT

All the features and superior performance of the Classic Multi-Purpose Screw manufactured from marine grade A4 Stainless Steel. Ideal for coastal and highly corrosive environments when fixing to softwoods, hardwood (pre-drilled), chipboard, MDF and plastic. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

210 in stock

Description

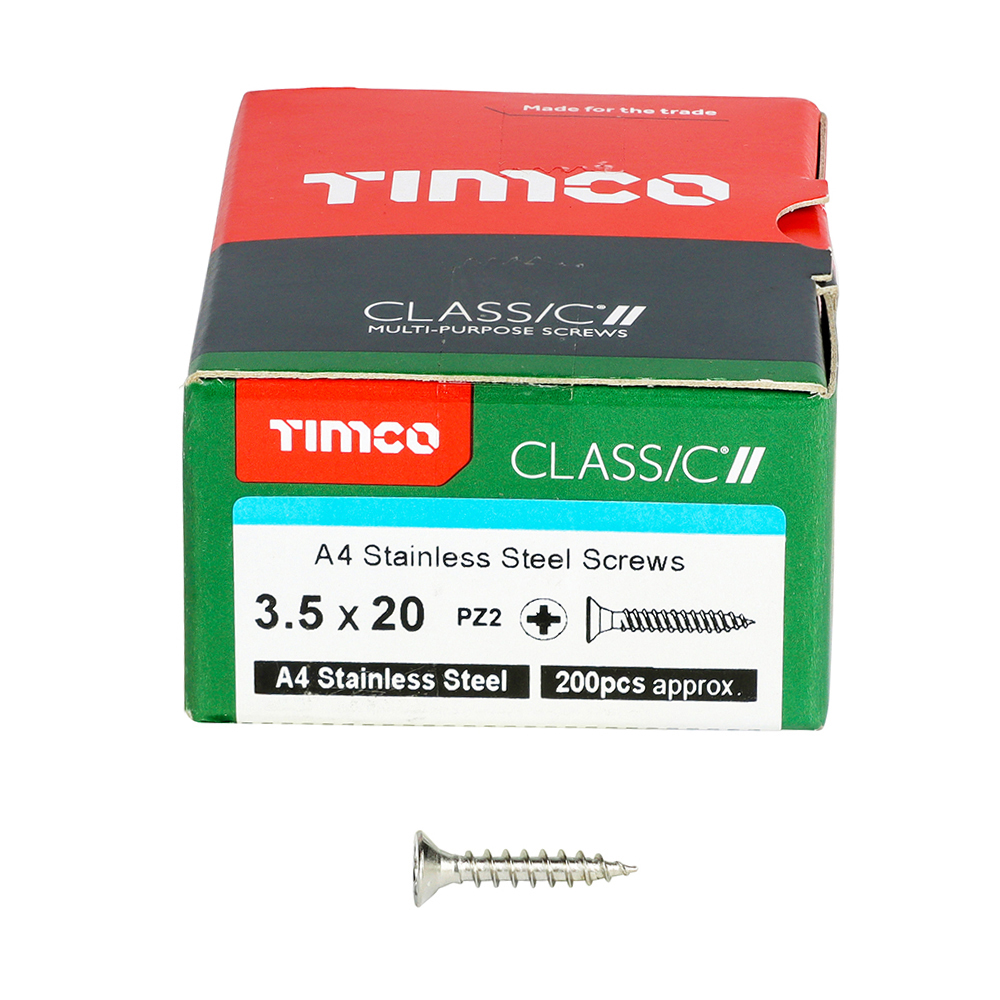

  • Pack Type Box
    Pack Qty 200
    L (inch) 34
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
    Pack Dimensions L x W x H (mm) 70 x 58 x 34
    Pack Weight (kg) 0.184
    Gauge 6
    Thread Ø (mm) 3.5
    Corrosion Rating (1-5) 5 – Industrial & coastal areas with an aggressive salt atmosphere
    Head Type Double Countersunk
    Driver Bit Size PZ1
    Head Ø (mm) 6.68
    Thread L (mm) 15
    Thread Type Single Coarse 40°
    CE Standard BS EN 14592:2008
    L (mm) 20
    Size (imp.) 6 x 34
    Inner Thread Ø d1 (mm) 2.25
    Size (mm) 3.5 x 20
    Recess Type Pozi
    Material A4 Stainless Steel
    Point Type 25° Sharp
    Thread Coverage Fully Threaded
    Brand TIMCO
    Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    Feature 2 40° deep single thread to provide a secure fixing with high pull-out resistance
    Feature 3 Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    Feature 4 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Additional information

Weight 0.184 kg
