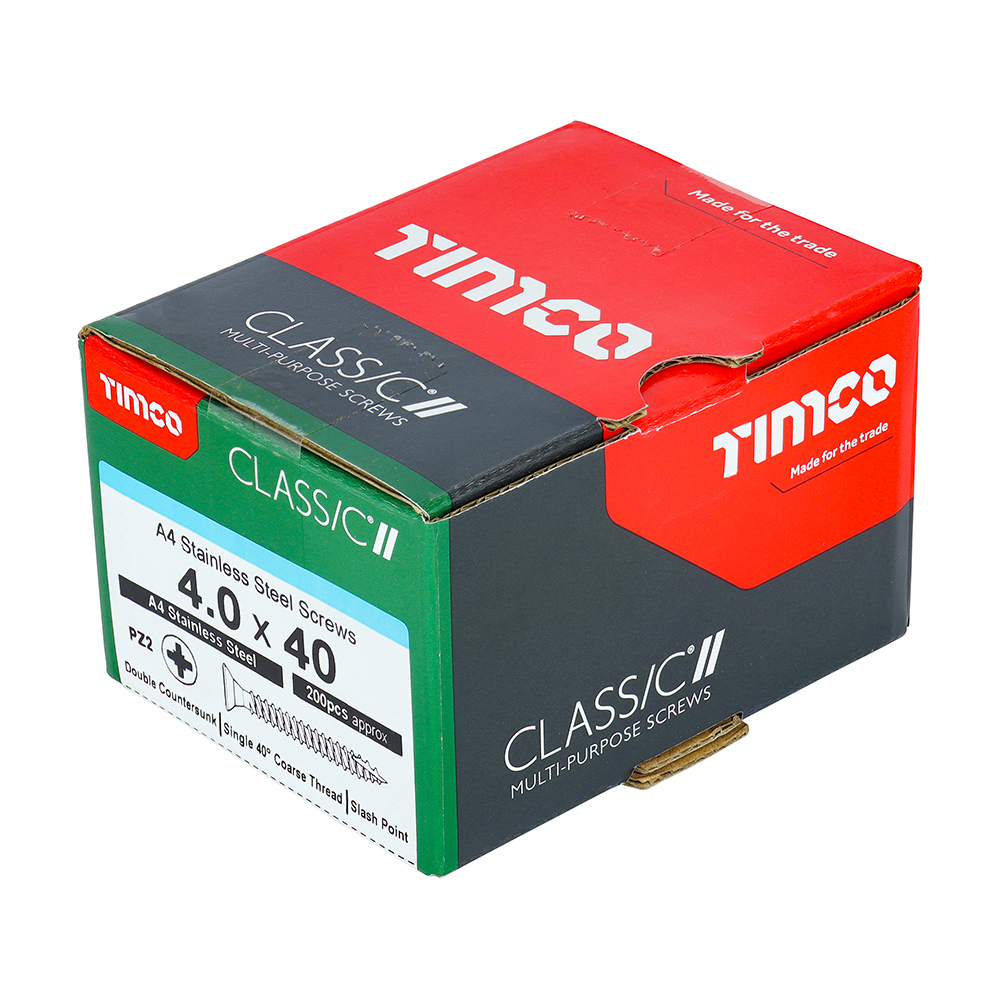

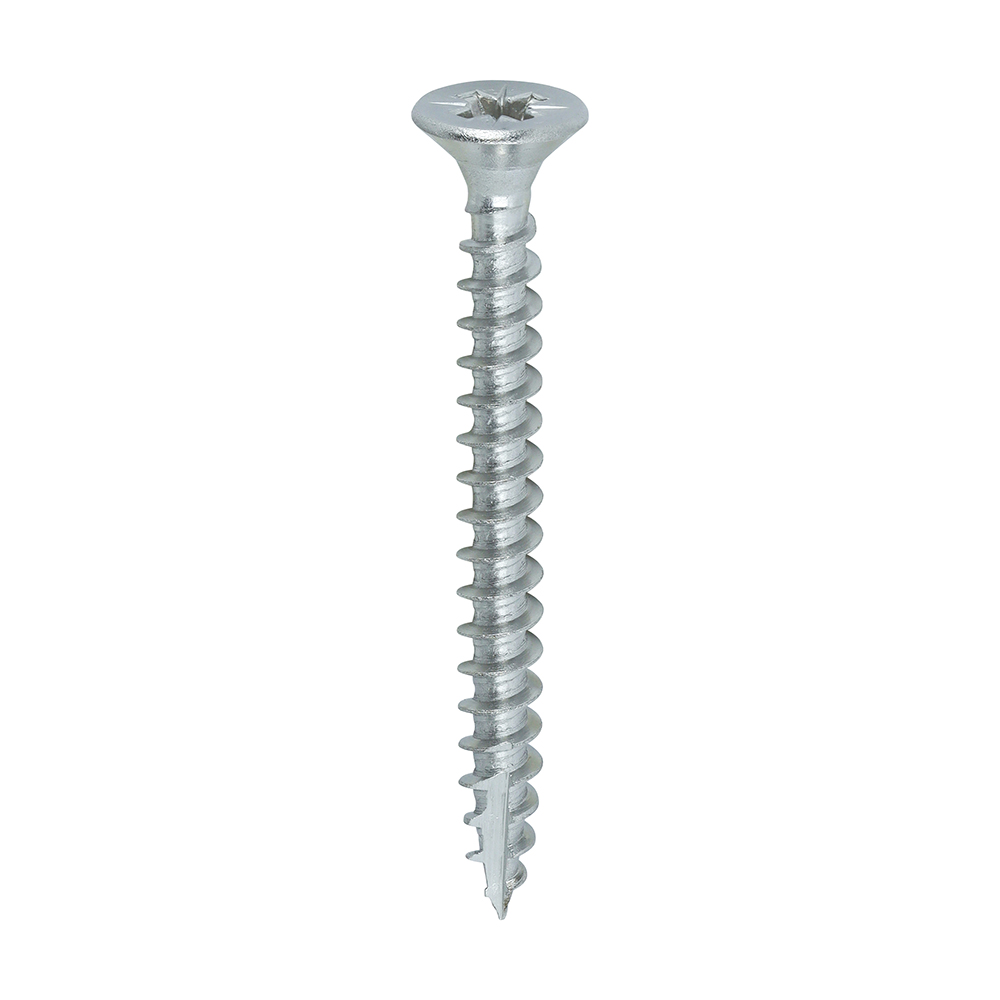

Timco Classic Multi-Purpose Screws – 4.0 x 40 – PZ – Double Countersunk – A4 Stainless Steel – Box of 200 – 40040CLA4

Description

• Pack Type	Box
  Pack Qty	200
  Material	A4 Stainless Steel
  Recess Type	Pozi
  Pack Dimensions L x W x H (mm)	92 x 72 x 58
  L (mm)	40
  Thread Type	Single Coarse 40°
  Point Type	25° Sharp with Single Slash
  CE Standard	BS EN 14592:2008
  Head Ø (mm)	7.87
  Inner Thread Ø d1 (mm)	2.5
  Corrosion Rating (1-5)	5 – Industrial & coastal areas with an aggressive salt atmosphere
  L (inch)	1 1⁄2
  Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
  Gauge	8
  Thread L (mm)	35
  Size (imp.)	8 x 1 1⁄2
  Driver Bit Size	PZ2
  Thread Ø (mm)	4
  Size (mm)	4.0 x 40
  Head Type	Double Countersunk
  Pack Weight (kg)	0.46
  Thread Coverage	Fully Threaded
  Brand	TIMCO
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Feature 2	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 3	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
  Feature 4	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
