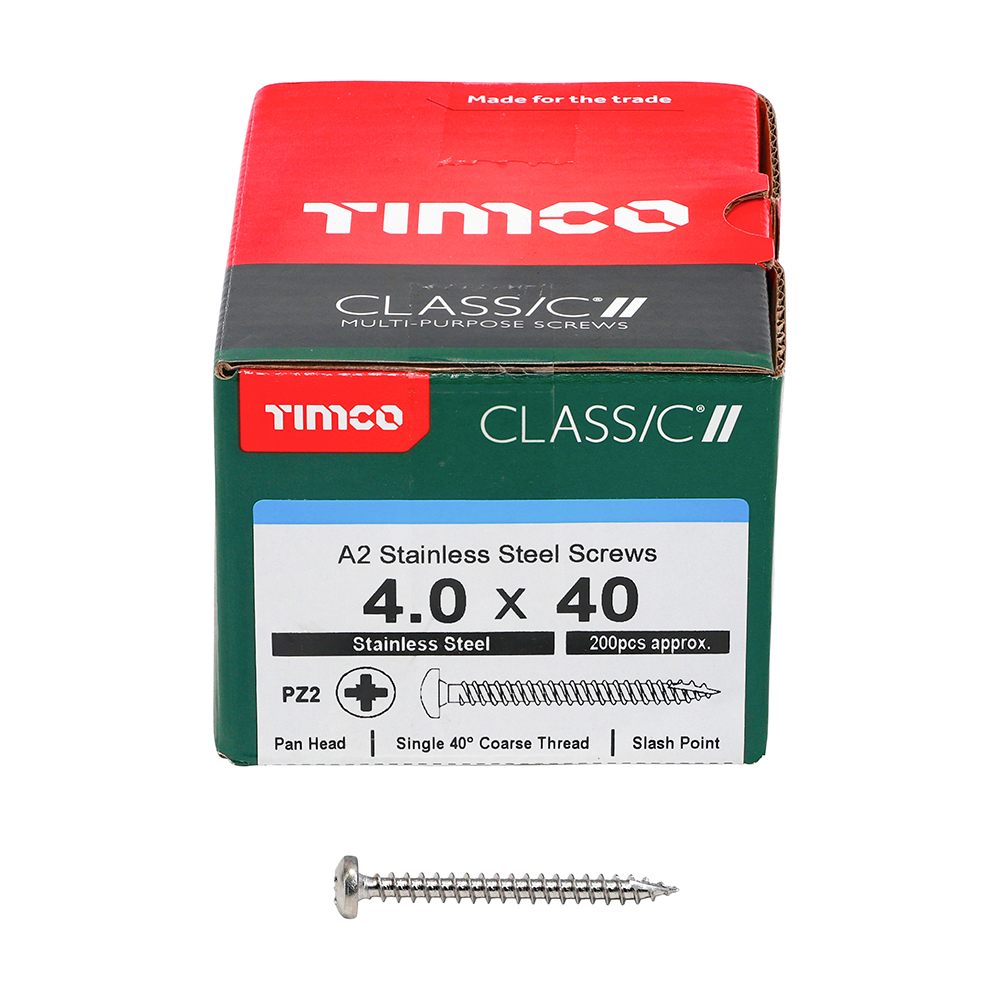

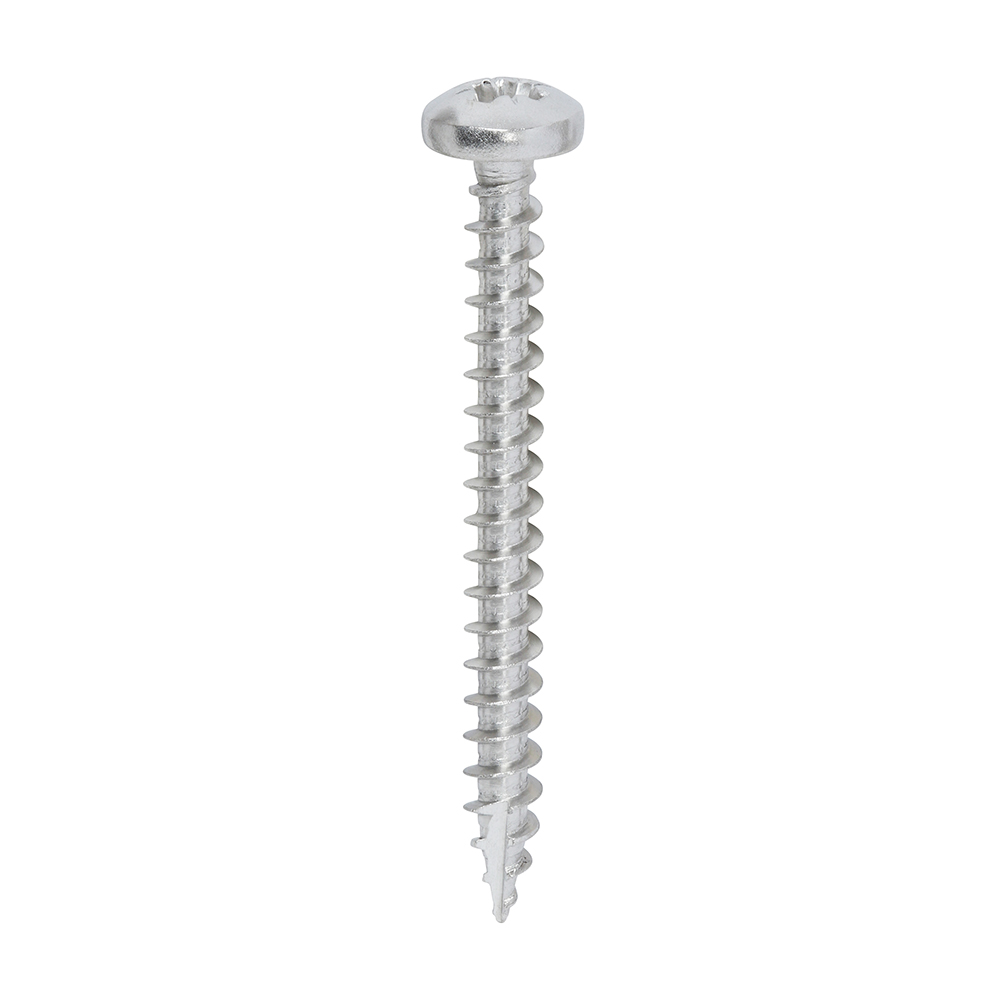

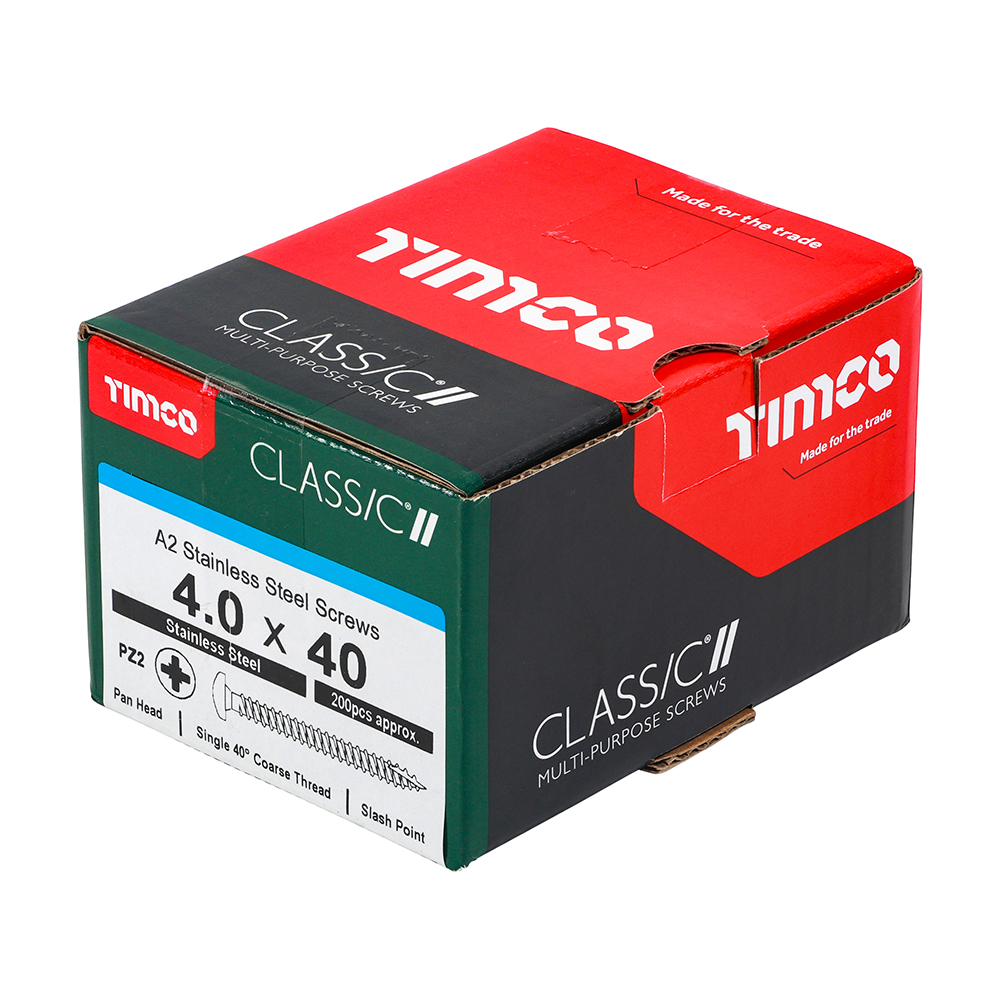

Timco Classic Multi-Purpose Screws – 4.0 x 40 – PZ – Pan Head – A2 Stainless Steel – Box of 200 – 40040CLAPSS

Description

• Pack Type	Box
  Pack Qty	200
  Brand	TIMCO
  CE Standard	BS EN 14592:2008
  Corrosion Rating (1-5)	4 – Urban & industrial areas with a moderate salt atmosphere
  Driver Bit Size	PZ2
  Feature 1	Pan head for improved clamping
  Feature 2	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 3	Single slash point to reduce torque and the risk of timber splitting at low edge distance
  Feature 4	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  Gauge	8
  Head Ø (mm)	7.9
  Head Type	Pan
  Inner Thread Ø d1 (mm)	2.45
  L (inch)	1 1⁄2
  L (mm)	40
  Material	Austenitic Stainless Steel (A2-304)
  Pack Dimensions L x W x H (mm)	92 x 72 x 58
  Pack Weight (kg)	0.51
  Point Type	25° Sharp with Single Slash
  Recess Type	Pozi
  Size (imp.)	8 x 1 1⁄2
  Size (mm)	4.0 x 40
  Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal, Corrosive Wood (e.g. Oak, Cedar)
  Thread Coverage	Fully Threaded
  Thread L (mm)	40
  Thread Ø (mm)	4
  Thread Type	Single Coarse 40°
