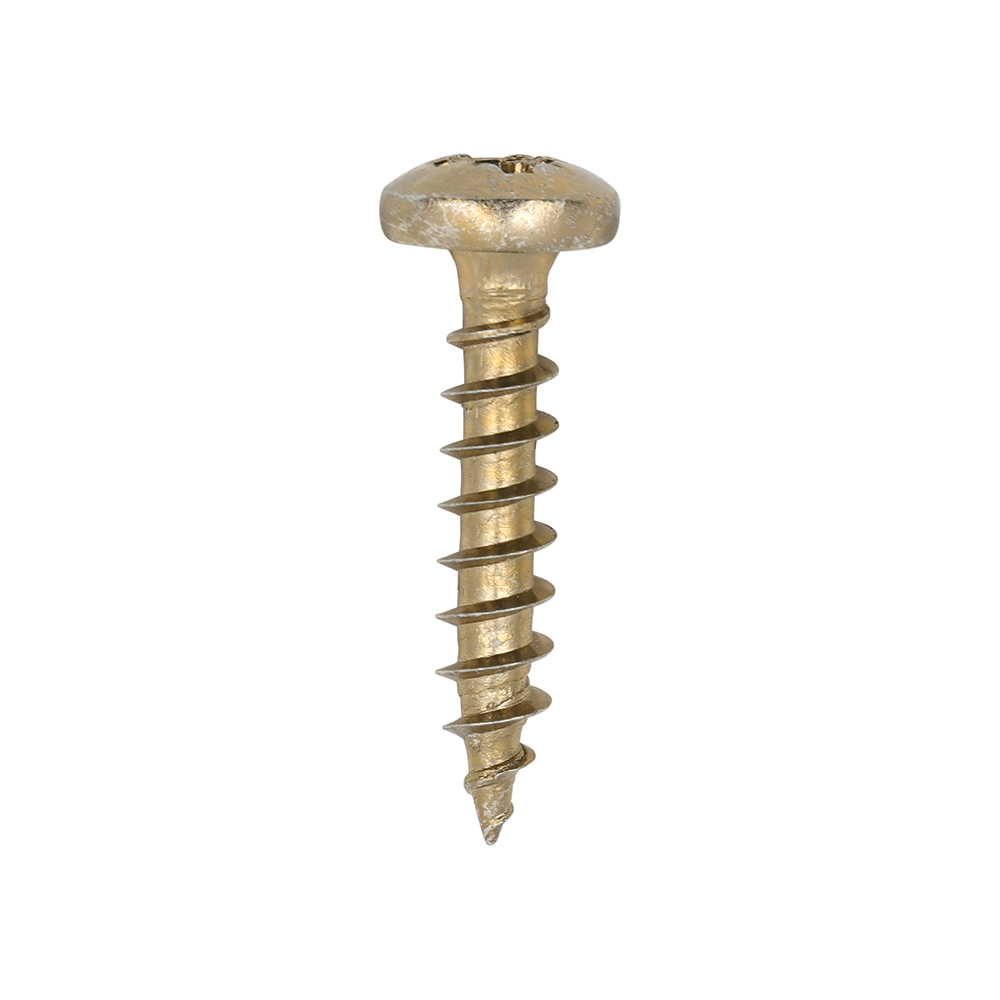

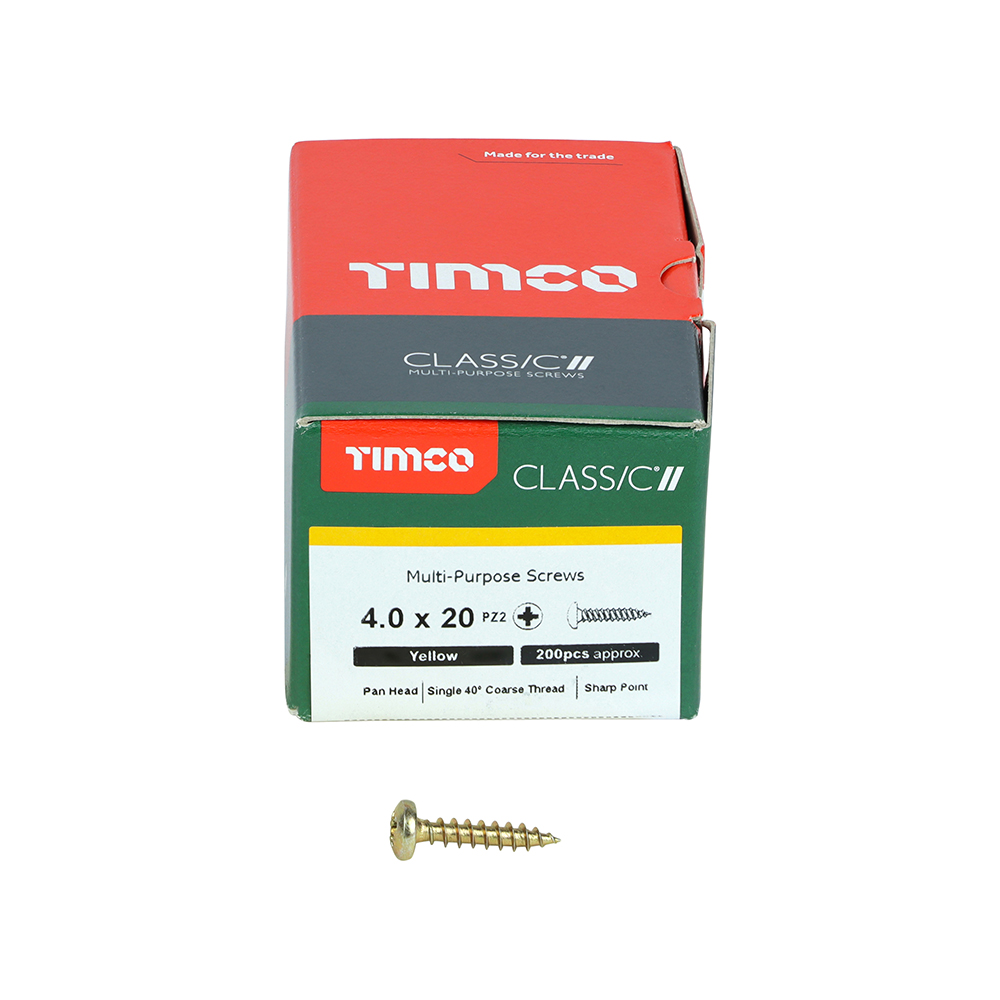

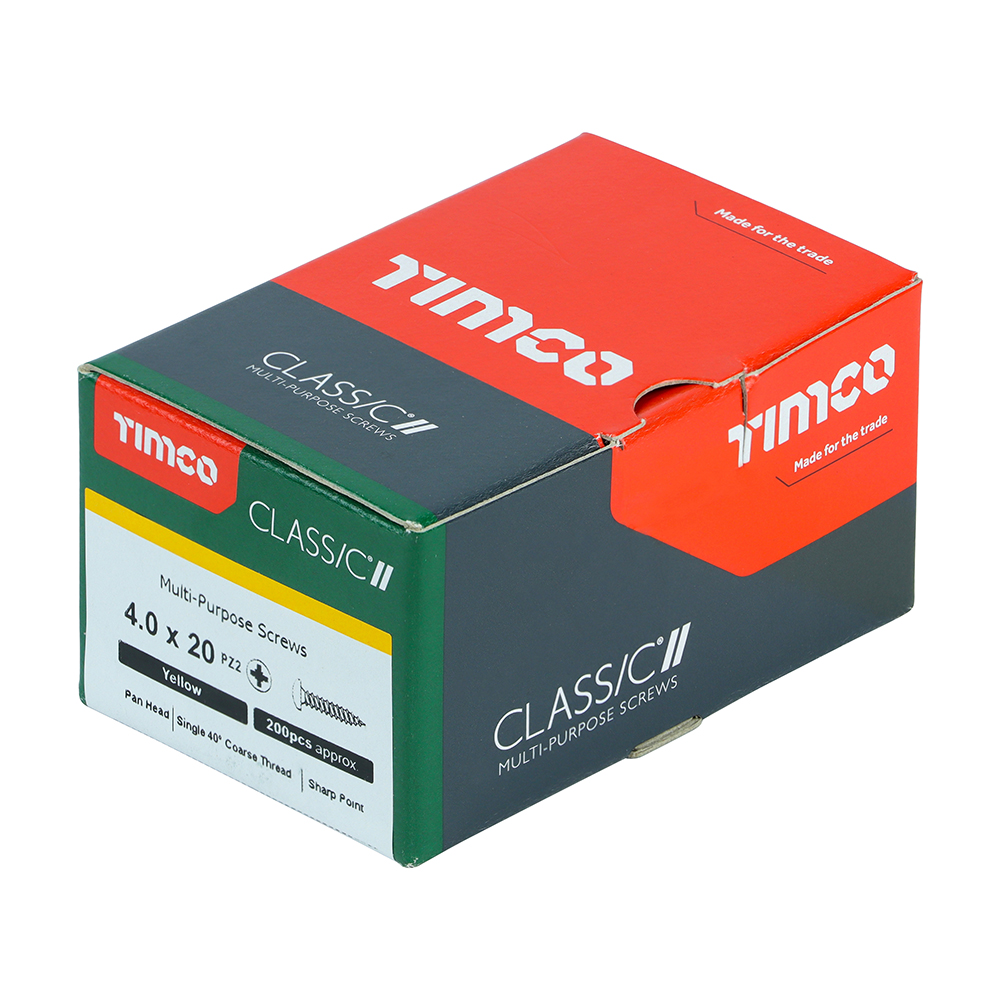

Timco Classic Multi-Purpose Screws – Yellow 4.0 x 20 – PZ – Pan Head – Box of 200 – 40020CLAP

Description

• Pack Type	Box
  Pack Qty	200
  Head Ø (mm)	7.87
  Material	Carbon Steel
  Corrosion Rating (1-5)	2 – Occasionally damp/wet, rural and sheltered areas
  Finish	Zinc & Yellow
  Inner Thread Ø d1 (mm)	2.5
  Size (mm)	4.0 x 20
  Thread L (mm)	20
  Recess Type	Pozi
  Driver Bit Size	PZ2
  Pack Dimensions L x W x H (mm)	85 x 55 x 45
  Lubrication	Gleitmo
  L (mm)	20
  Thread Ø (mm)	4
  Pack Weight (kg)	0.32
  Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
  Head Type	Pan
  Point Type	25° Sharp
  Thread Type	Single Coarse 40°
  Thread Coverage	Fully Threaded
  Brand	TIMCO
  Feature 1	Pan head for improved clamping
  Feature 2	Fully threaded up to 75mm, thereafter partially threaded
  Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 4	Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
