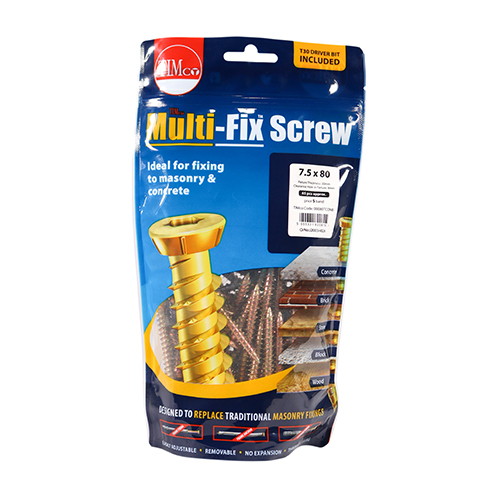

Timco Concrete Screws – 7.5 x 80 – TX – Flat Countersunk – Yellow – TIMbag of 65 – 00080TCONB

£7.08 £5.90 Ex VAT

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.

• Designed to replace traditional masonry fixings
• TX30 TX Drive recess to reduce driver wear & prevent camming-out
• Serrated V-threads to achieve optimum insertion into all masonry types
• Zinc plated and yellow passivated for increased corrosion resistance
• High-Low thread on first 30mm to aid insertion and reduce torque
• Ideal for fitting windows and door frames
• Flat countersunk head with five locking ribs
• All steel, non-flammable fixing conforming to BS 7671 standard’s 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

2100 in stock

Description

  • Pack Type TIMbag
    Pack Qty 65
    Head Type Flat Countersunk with Ribs
    MFT (mm) 30
    Fixture Hole Size Ø (mm) 8
    Pack Dimensions L x W x H (mm) 265 x 152 x 50
    Substrates Wood, Concrete, Brick, Block, Stone
    Thread Type High-Low Start with V Flutes
    Point Type Sharp
    Driver Bit Size TX30
    Thread Ø (mm) 7.5
    Finish Zinc & Yellow
    Size Ø x L (mm) 7.5 x 80
    Pack Weight (kg) 0.95
    Approval BS 7671:2018
    Material Carbon Steel
    Corrosion Rating (1-5) 1 – Clean, dry & low humidity environments
    Recess Type TX Drive
    Thread Coverage Fully Threaded
    Brand TIMCO
    Feature 1 All steel, non-flammable fixing conforming to BS 7671 standard’s 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
    Feature 2 Flat countersunk head with five locking ribs

Additional information

Weight 0.95 kg
