Online Fixings£25.30 £21.08 Ex VAT

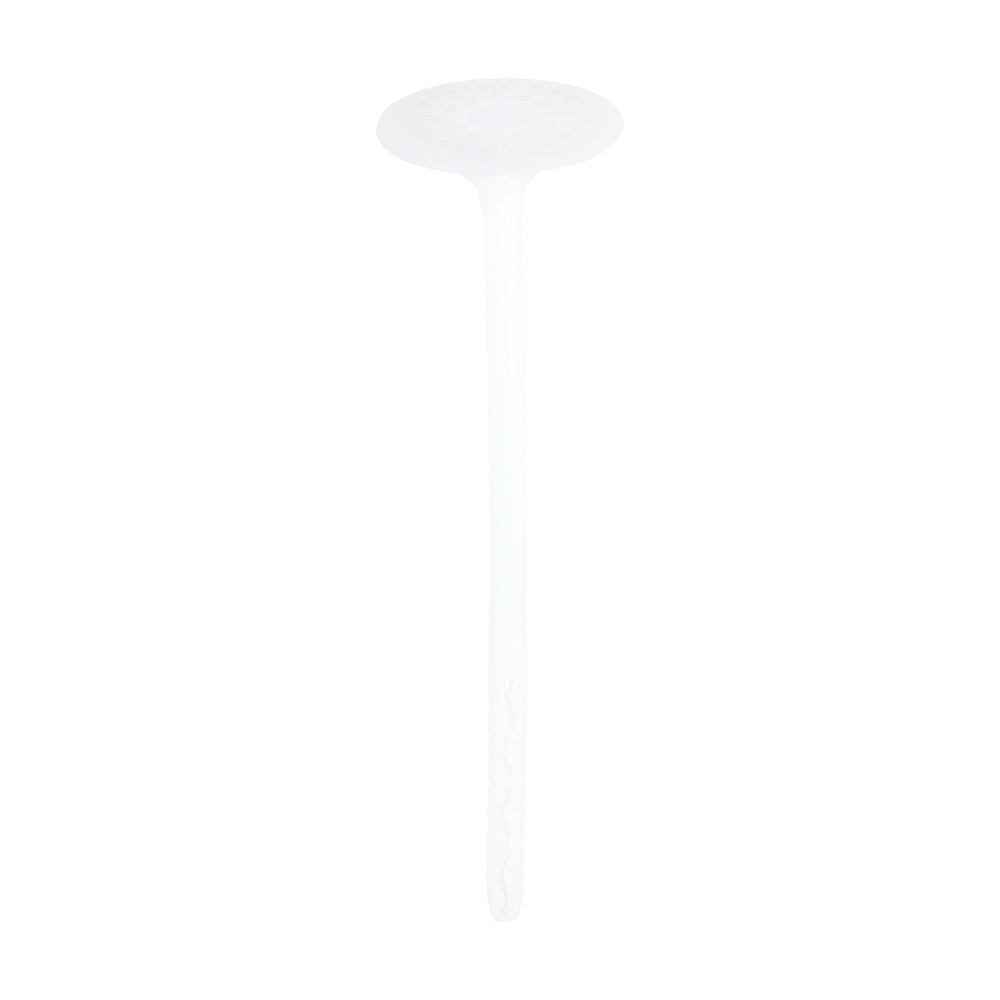

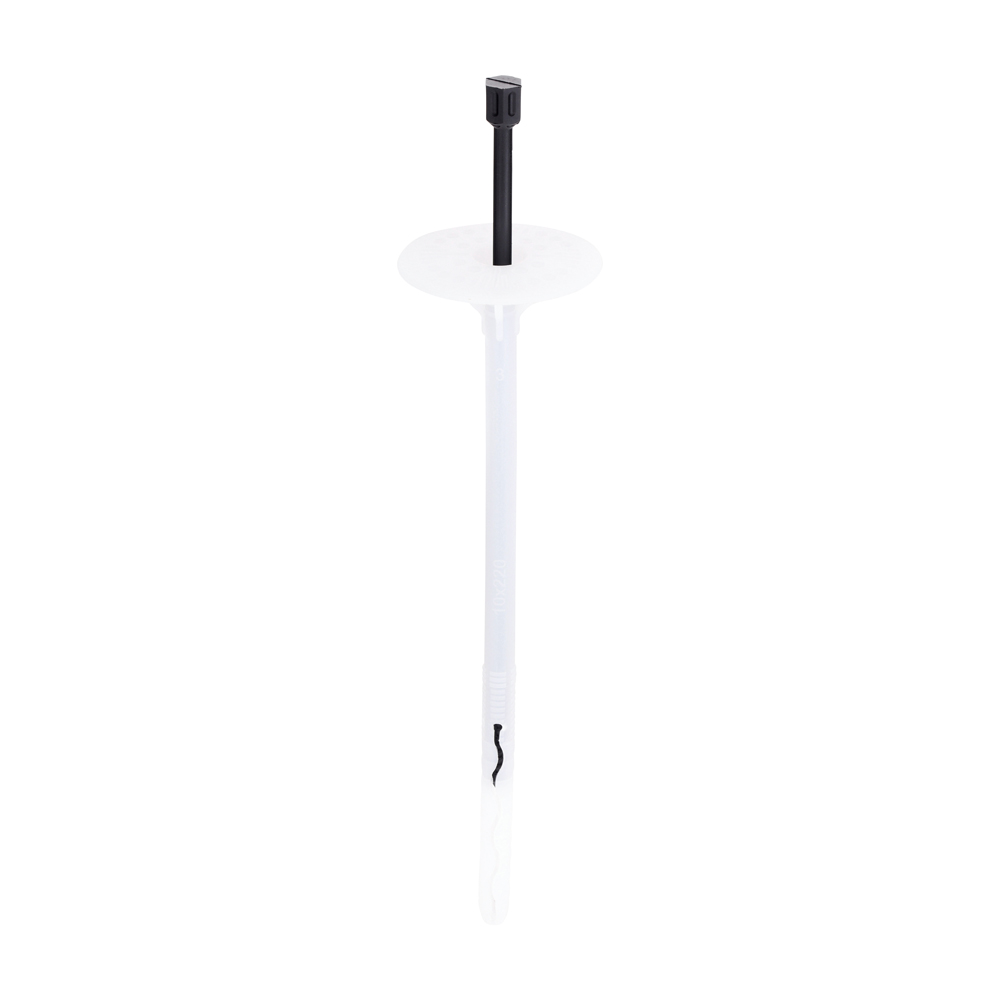

Hammer-in insulation fixing with a polyamide pin for fixing external thermal insulation (ETICS) into concrete or masonry.

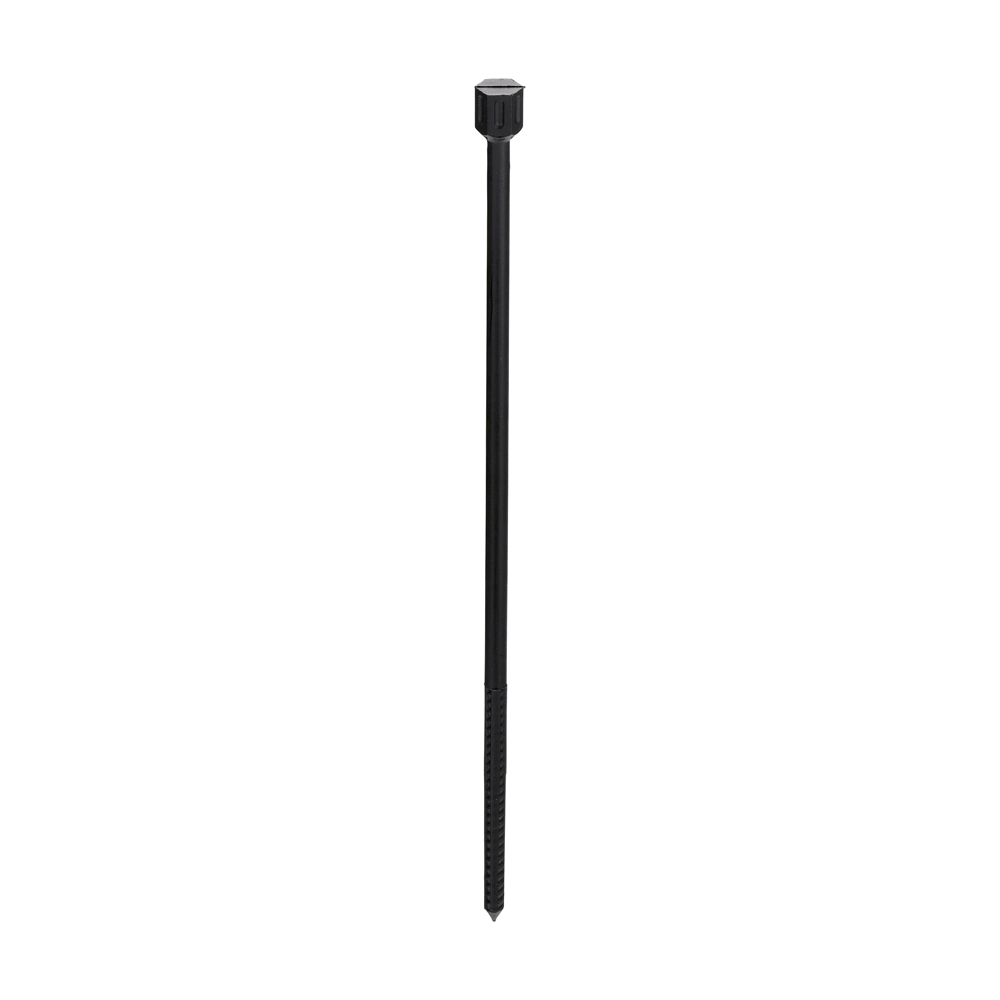

• Impact Resistant – rigid polyamide pin provides a reliable fixing.
• Versatile – double anchoring zones (35mm & 70mm) meaning one dowel can be used in different insulation thicknesses.
• Compatible with TDW110 Insulation Fixing Washer – for easier installation of softer materials such as insulation wool.
• Surface or Recessed Mounting – when used with the 67mm disc cutter (ZPFS) and styrofoam insulation discs (ZB100).
• Quality Confirmed – CE approved to Regulation (EU) 305/2011 and third-party tested (ETA-19/0573).
71 in stock
| Pack Qty | 100 |
| Pack Type | Box |
| Brand | Ziel-Plast |
| Drill Hole Ø (mm) | 10 |
| Head Ø (mm) | 60 |
| Max. Embedment Depth (mm) | 70 |
| MFT (mm) | 185 |
| Min. Drill Hole Depth (mm) | 45 or 80 |
| Min. Embed. Depth (mm) | 35 |
| Ø (mm) | 10 |
| Size | 10.0 x 220mm |
| Size Ø x L (mm) | 10.0 x 220 |
| Substrates | Concrete, Brick, Block |
| Weight | 2.36 kg |
|---|
