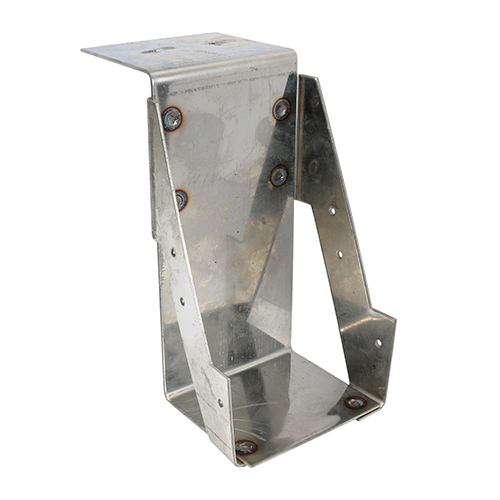

Timco Welded Masonry Joist Hangers – A2 Stainless Steel 100 x 200 – Box of 6 – 100200WMHS

£194.83 £162.36 Ex VAT

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

• Conforms to Eurocode 6 and service class 3
• Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber

9 in stock

SKU: 100200WMHS Categories: ,

Description

  • Pack Qty 6
    Approval BS 5628
    B (mm) 80
    Brand TIMCO
    CE Standard BS EN 845-1:2013+A1:2016
    Corrosion Rating (1-5) 4 – Urban & industrial areas with a moderate salt atmosphere
    Eurocode 6
    Feature 1 Conforms to Eurocode 6 and service class 3
    Feature 2 Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
    H (mm) 190
    Joist Size W x H (mm) 100 x 200
    Material Austenitic Stainless Steel (A2-304)
    Nail Holes (3.75mm) 6
    Pack Dimensions L x W x H (mm) 80 x 100 x 190
    Pack Weight (kg) 0.81
    Safe Working Load (kN) 3.5
    Service Class 3
    Thickness (mm) 2.4
    Type Welded
    W (mm) 100

Additional information

Weight 4.86 kg
