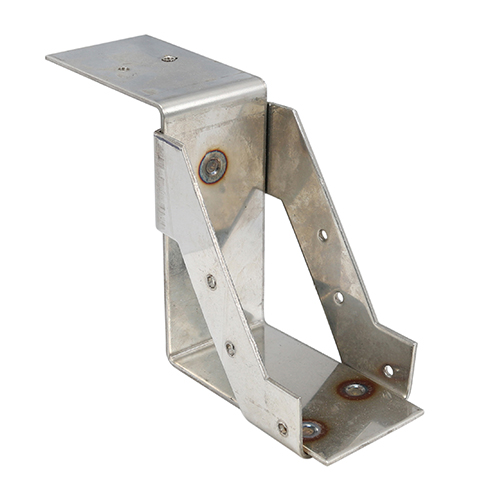

Timco Welded Masonry Joist Hangers – A2 Stainless Steel 47 x 100 – Pack of 6 – 47100WMHS

£111.38 £92.82 Ex VAT

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oak.

• Conforms to Eurocode 6 and service class 3

11 in stock

Description

  • Pack Qty 6
    Approval BS 5628
    B (mm) 80
    Brand TIMCO
    CE Standard BS EN 845-1:2013+A1:2016
    Corrosion Rating (1-5) 4 – Urban & industrial areas with a moderate salt atmosphere
    Eurocode 6
    Feature 1 Conforms to Eurocode 6 and service class 3
    H (mm) 100
    Joist Size W x H (mm) 47 x 100
    Material Austenitic Stainless Steel (A2-304)
    Nail Holes (3.75mm) 6
    Pack Dimensions L x W x H (mm) 80 x 47 x 100
    Pack Weight (kg) 0.34
    Safe Working Load (kN) 3.5
    Service Class 3
    Thickness (mm) 2.4
    Type Welded
    W (mm) 47

Additional information

Weight 2.04 kg
