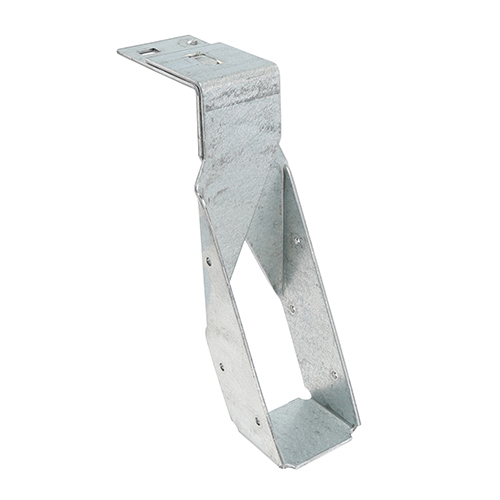

Timco Single Piece Masonry Hangers – Galvanised 47 x 200 – Box of 10 – 47200MH

£31.68 £26.40 Ex VAT

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.

• Conforms to Eurocode 6 and service class 2
• Straight top flange
• No welds
• Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber

510 in stock

Description

  • Pack Qty 10
    B (mm) 75
    Brand TIMCO
    CE Standard BS EN 845-1:2013+A1:2016
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    Feature 1 Conforms to Eurocode 6 and service class 2
    Feature 2 Straight top flange
    Feature 3 No welds
    Feature 4 Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
    Finish Galvanised
    H (mm) 190
    Joist Size W x H (mm) 47 x 200
    Material Carbon Steel
    Nail Holes (3.75mm) 6
    Safe Working Load (kN) 5.4
    Type Single Piece
    W (mm) 47

Additional information

Weight 5.1 kg
