Timco Welded Masonry Joist Hangers – Galvanised 75 x 175 – Pack of 10 – 75175WMH

£38.04 £31.70 Ex VAT

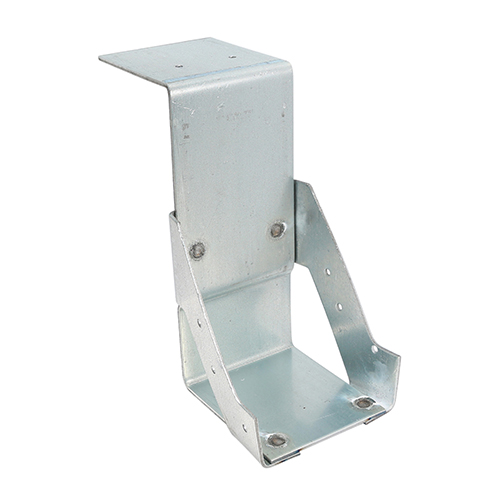

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.

• Conforms to Eurocode 6 and service class 2
• Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber

85 in stock

Description

  • Pack Qty 10
    Approval BS 5628
    B (mm) 80
    Brand TIMCO
    CE Standard BS EN 845-1:2013+A1:2016
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    Eurocode 6
    Feature 1 Conforms to Eurocode 6 and service class 2
    Feature 2 Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
    Finish Galvanised
    H (mm) 165
    Joist Size W x H (mm) 75 x 175
    Material Carbon Steel
    Nail Holes (3.75mm) 6
    Pack Dimensions L x W x H (mm) 165 x 75 x 80
    Pack Weight (kg) 0.59
    Safe Working Load (kN) 3.5
    Service Class 2
    Thickness (mm) 2.4
    Type Welded
    W (mm) 75

Additional information

Weight 5.9 kg
