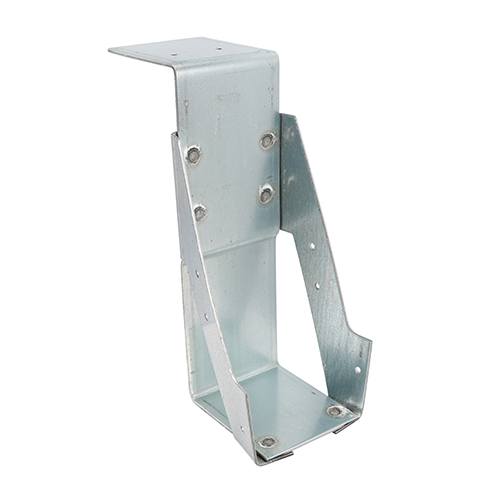

Timco Welded Masonry Joist Hangers – Galvanised 75 x 225 – Box of 10 – 75225WMH

£43.20 £36.00 Ex VAT

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.

• Conforms to Eurocode 6 and service class 2
• Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber

260 in stock

Description

  • Pack Qty 10
    Approval BS 5628
    B (mm) 80
    Brand TIMCO
    CE Standard BS EN 845-1:2013+A1:2016
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    Eurocode 6
    Feature 1 Conforms to Eurocode 6 and service class 2
    Feature 2 Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber
    Finish Galvanised
    H (mm) 215
    Joist Size W x H (mm) 75 x 225
    Material Carbon Steel
    Nail Holes (3.75mm) 6
    Pack Dimensions L x W x H (mm) 215 x 75 x 80
    Pack Weight (kg) 0.75
    Safe Working Load (kN) 3.5
    Service Class 2
    Thickness (mm) 2.4
    Type Welded
    W (mm) 75

Additional information

Weight 7.5 kg
