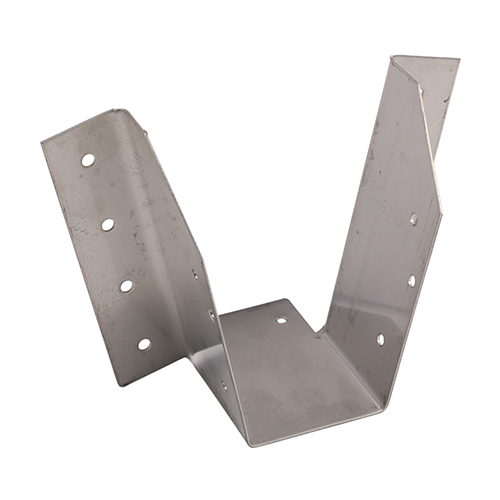

Timco Timber Hangers – Mini – A2 Stainless Steel 47 x 75 to 100 – Box of 10 – 47THMS

£83.40 £69.50 Ex VAT

Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. NOTE: Tag on base of the hanger helps avoid rotation. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material.

• Conforms to Eurocode 5 and service class 3

9 in stock

SKU: 47THMS Categories: ,

Description

  • Pack Type Box
    Pack Qty 10
    Approval BS 5268
    B (mm) 50
    Brand TIMCO
    Corrosion Rating (1-5) 4 – Urban & industrial areas with a moderate salt atmosphere
    Eurocode 5
    Feature 1 Conforms to Eurocode 5 and service class 3
    H (mm) 96
    Joist Size W x H (mm) 47 x 75 to 100
    Material Austenitic Stainless Steel (A2-304)
    Nail Holes (3.75mm) 20
    Pack Dimensions L x W x H (mm) 50 x 47 x 96
    Pack Weight (kg) 0.12
    Safe Working For BS5268 (kN) Long Term 3.96
    Safe Working For BS5268 (kN) Medium Term 4.53
    Safe Working For BS5268 (kN) Short Term 4.75
    Service Class 3
    Thickness (mm) 1
    Type Mini
    W (mm) 47

Additional information

Weight 1.2 kg
