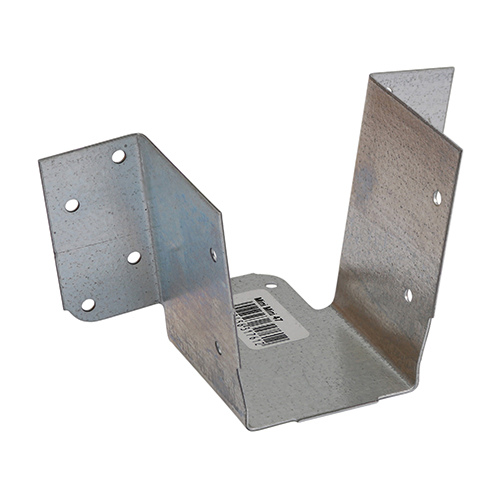

Timco Timber Hangers – Mini – Galvanised 47 x 75 to 100 – Box of 20 – 47THM

£18.00 £15.00 Ex VAT

Designed to give a small and economic light weight timber to timber connection such as loft hatches and decking. Timber to timber joist hangers are suitable for light duty applications such as ceiling joists, decking and trimmers. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Tag on base of the hanger helps avoid rotation.

• Conforms to Eurocode 5 and service class 2

7100 in stock

SKU: 47THM Categories: ,

Description

  • Joist Size W x H (mm) 47 x 75 to 100
    Characteristic Value (kN) For Eurocode 8.34
    Safe Working For BS5268 (kN) Short Term 4.17
    Corrosion Rating (1-5) 2 – Occasionally damp/wet, rural and sheltered areas
    Safe Working For BS5268 (kN) Long Term 3.47
    Material Carbon Steel
    B (mm) 50
    W (mm) 47
    Thickness (mm) 1
    Service Class 2
    Nail Holes (3.75mm) 14
    Pack Weight (kg) 0.09
    Type Mini
    Safe Working For BS5268 (kN) Medium Term 3.97
    H (mm) 67
    Pack Dimensions L x W x H (mm) 50 x 47 x 67
    Approval BS 5268
    Finish Galvanised
    Eurocode 5
    Brand TIMCO
    Feature 1 Conforms to Eurocode 5 and service class 2

Additional information

Weight 1.8 kg
