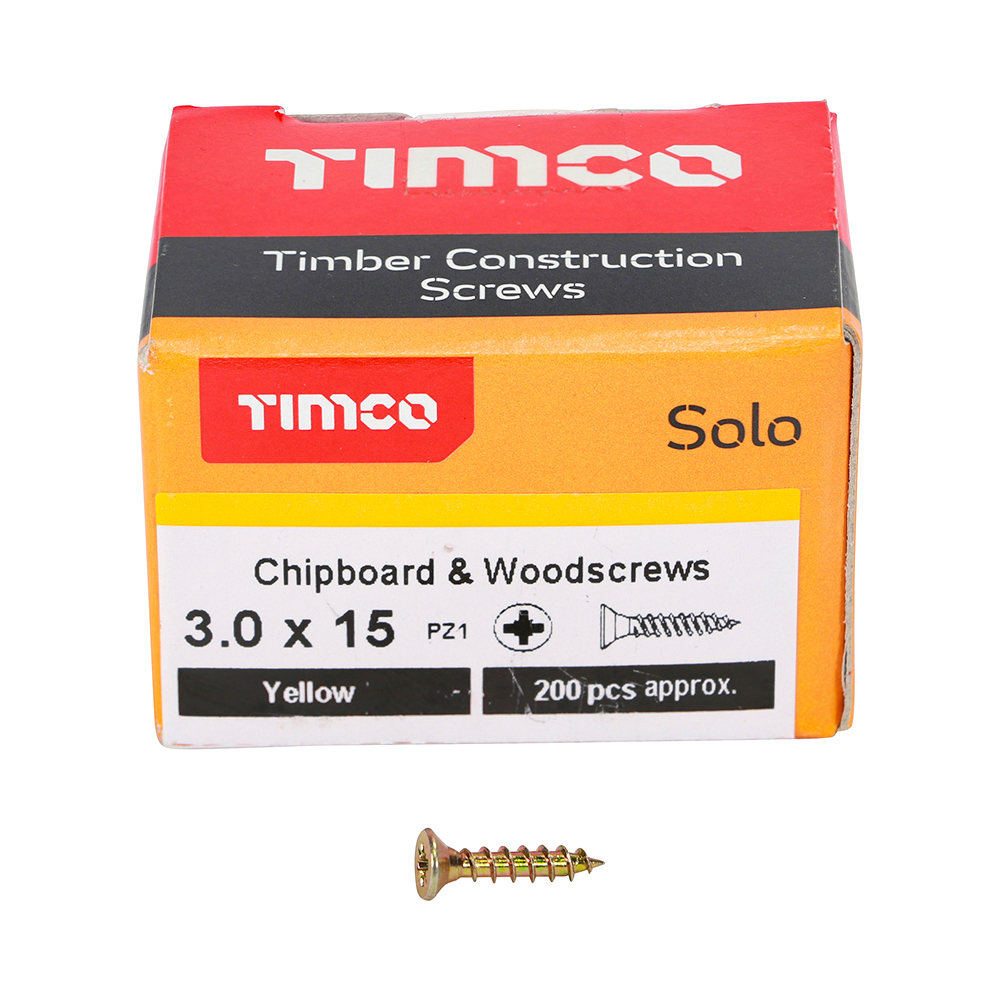

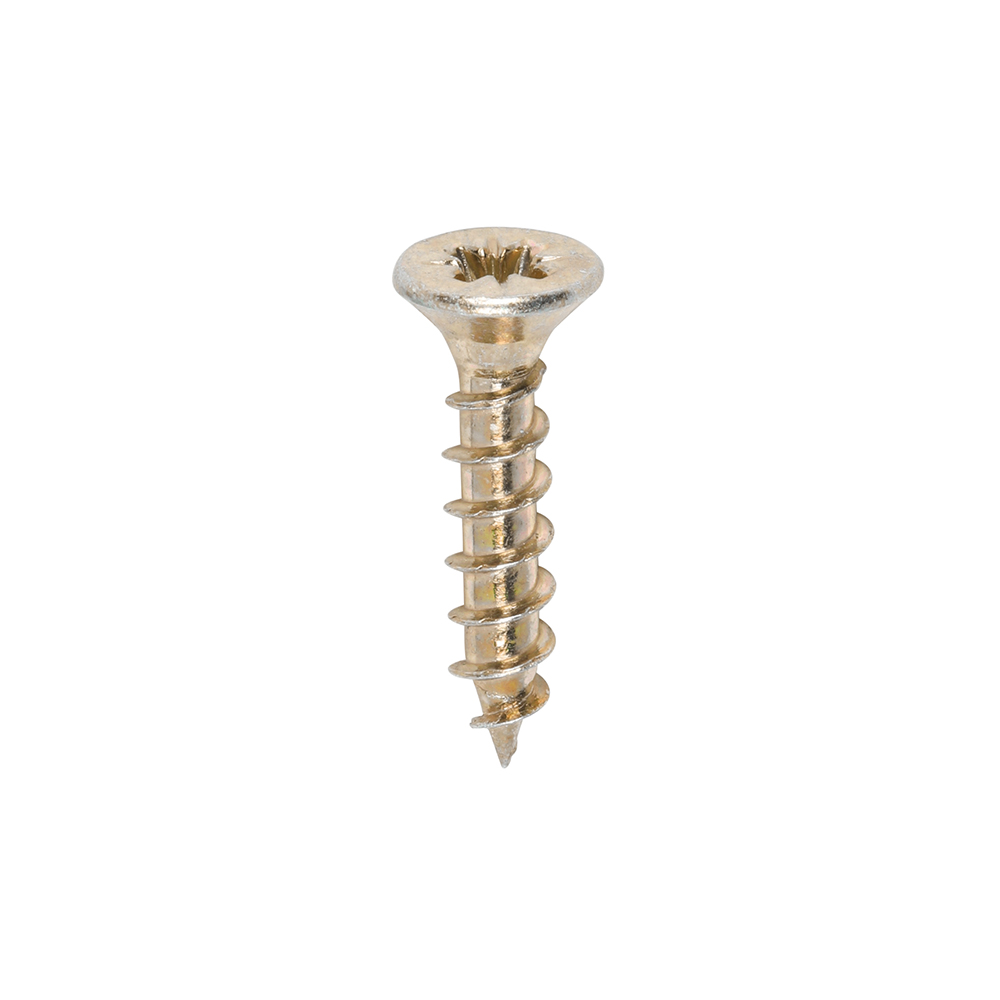

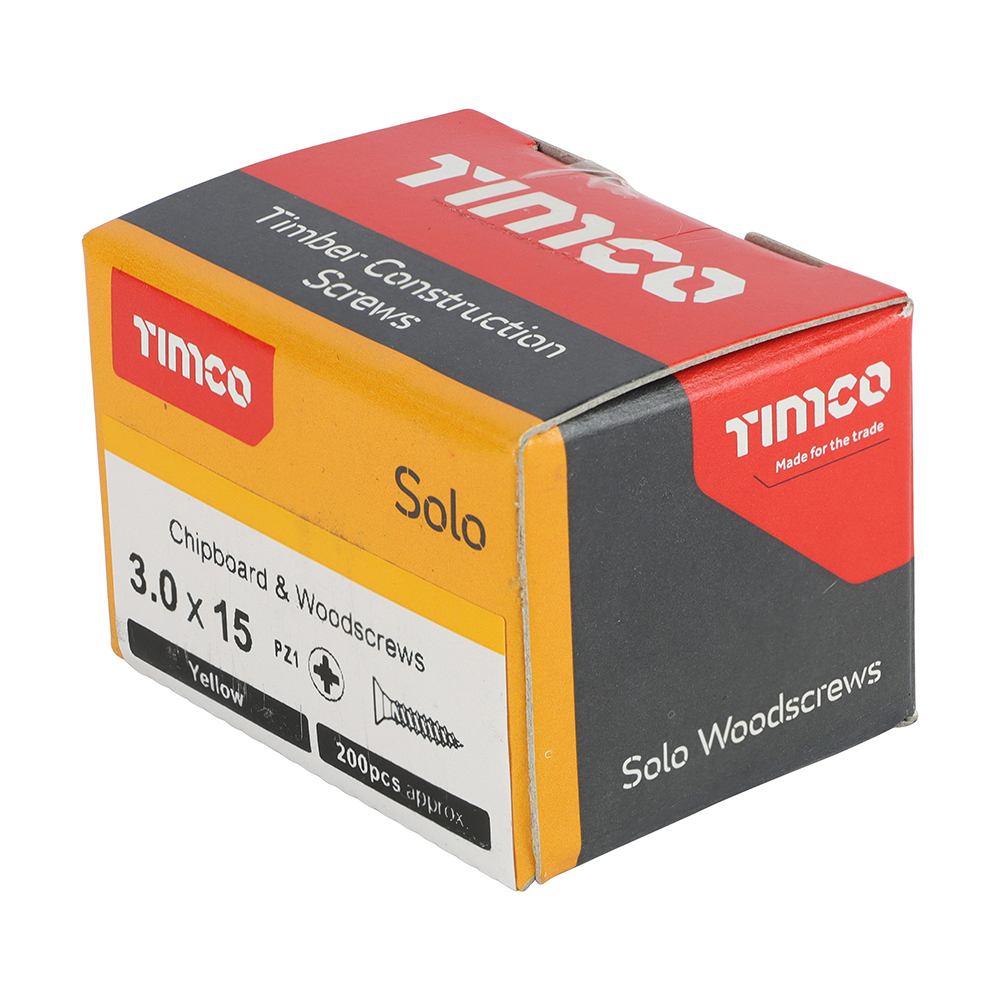

Timco Solo Chipboard & Woodscrews – 3.0 x 15 – PZ – Double Countersunk – Yellow – Box of 200 – 30015SOLOC

Description

• Pack Type	Box
  Pack Qty	200
  Size (mm)	3.0 x 15
  Lubrication	Wax
  Thread Type	40° Single Deep
  Substrates	Softwood, Chipboard, MDF, Masonry (with plug)
  Head Type	Double Countersunk
  Corrosion Rating (1-5)	1 – Clean, dry & low humidity environments
  Thread L (mm)	10
  Size (imp.)	4 x 5⁄8
  Material	Carbon Steel
  L (inch)	5⁄8
  Finish	Zinc & Yellow
  Recess Type	Pozi
  L (mm)	15
  Head Ø (mm)	5.82
  Point Type	25° Sharp
  Thread Ø (mm)	3
  Inner Thread Ø d1 (mm)	2
  Driver Bit Size	PZ1
  Gauge	4
  Feature 4	25° sharp point and single lead for a fast start and improved thread acceptance
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Brand	TIMCO
  Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 2	Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
  Feature 5	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  Thread Coverage	Fully Threaded
  Pack Weight (kg)	0.1
  Pack Dimensions L x W x H (mm)	56 x 40 x 38
