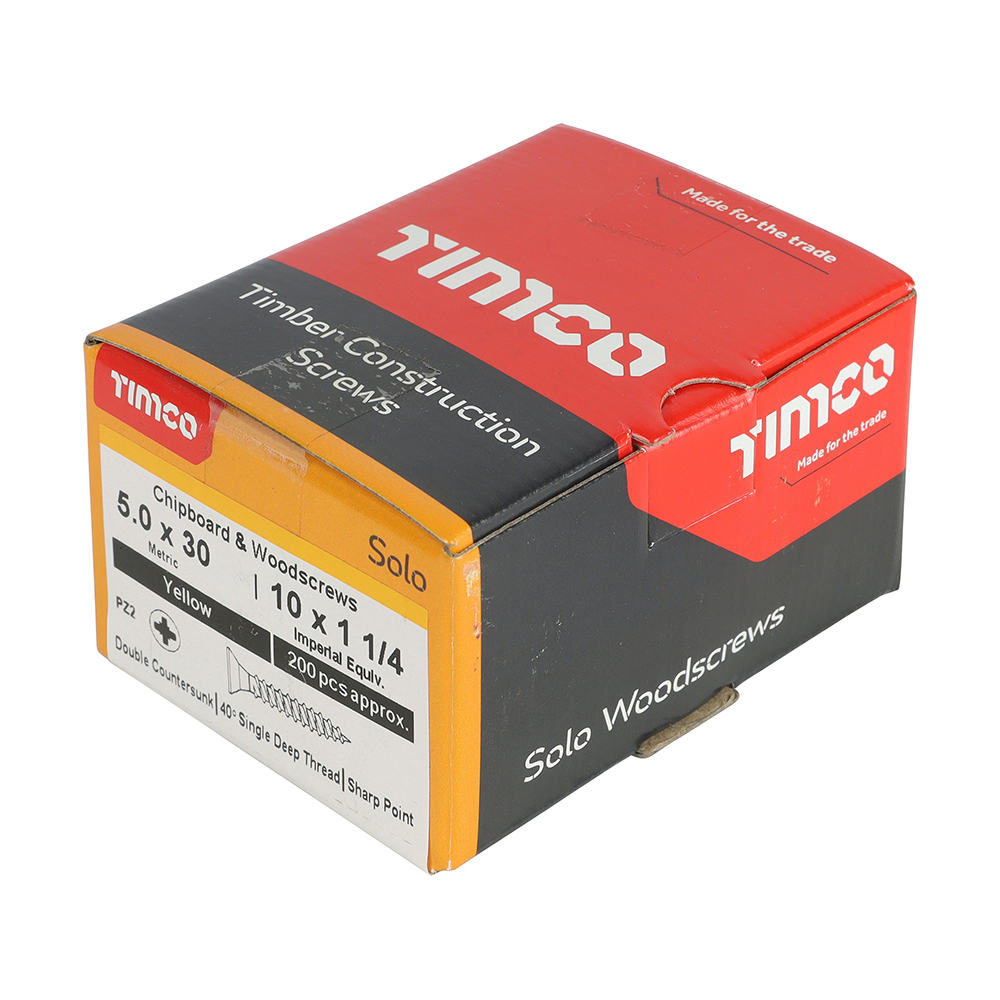

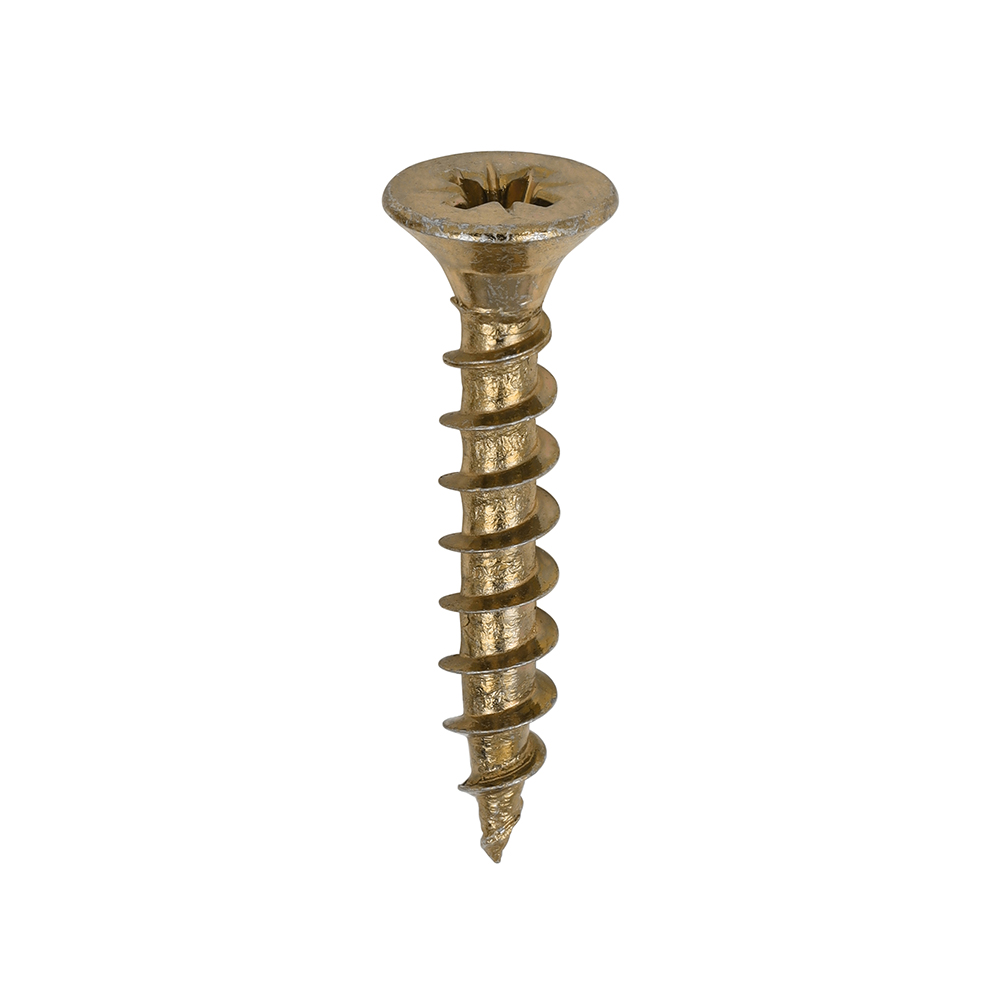

Timco Solo Chipboard & Woodscrews – 5.0 x 30 – PZ – Double Countersunk – Yellow – Box of 200 – 50030SOLOC

Description

• Pack Qty	200
  Pack Type	Box
  Brand	TIMCO
  Corrosion Rating (1-5)	1 – Clean, dry & low humidity environments
  Driver Bit Size	PZ2
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Feature 2	Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
  Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
  Feature 4	25° sharp point and single lead for a fast start and improved thread acceptance
  Feature 5	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  Finish	Zinc & Yellow
  Gauge	10
  Head Ø (mm)	9.74
  Head Type	Double Countersunk
  Inner Thread Ø d1 (mm)	3.1
  L (inch)	1 1⁄4
  L (mm)	30
  Lubrication	Wax
  Material	Carbon Steel
  Pack Dimensions L x W x H (mm)	92 x 74 x 54
  Pack Weight (kg)	0.52
  Point Type	25° Sharp
  Recess Type	Pozi
  Size (imp.)	10 x 1 1⁄4
  Size (mm)	5.0 x 30
  Substrates	Softwood, Chipboard, MDF, Masonry (with plug)
  Thread Coverage	Fully Threaded
  Thread L (mm)	25
  Thread Ø (mm)	5
  Thread Type	40° Single Deep
