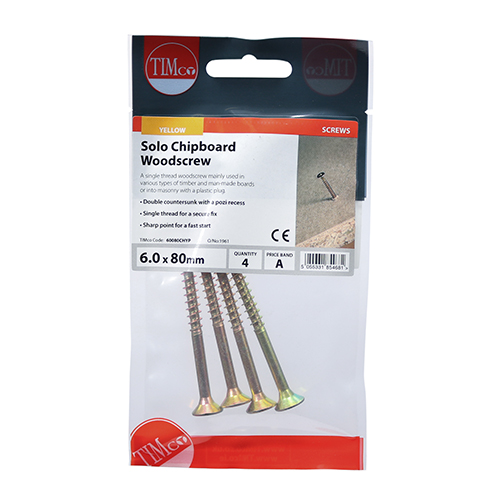

Timco Solo Woodscrews – 6.0 x 80 – PZ – Double Countersunk – Yellow – TIMpac of 4 – 60080CHYP

Description

• Pack Type	TIMpac
  Pack Qty	4
  Inner Thread Ø d1 (mm)	3.8
  Head Ø (mm)	11.57
  Thread Ø (mm)	6
  Head Type	Double Countersunk
  L (inch)	3
  Lubrication	Wax
  Pack Weight (kg)	0.043
  Thread Type	40° Single Deep
  Material	Carbon Steel
  Pack Dimensions L x W x H (mm)	15 x 90 x 163
  Point Type	25° Sharp
  Driver Bit Size	PZ3
  L (mm)	80
  Corrosion Rating (1-5)	1 – Clean, dry & low humidity environments
  Gauge	12
  Recess Type	Pozi
  Size (imp.)	12 x 3
  Substrates	Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
  Thread L (mm)	70
  Finish	Zinc & Yellow
  Size (mm)	6.0 x 80
  Feature 5	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
  Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
  Brand	TIMCO
  Feature 4	25° sharp point and single lead for a fast start and improved thread acceptance
  Feature 2	Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
  Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
  Thread Coverage	Fully Threaded
