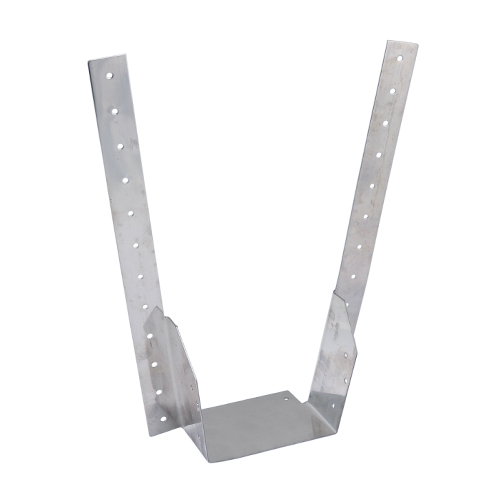

Timco Timber Hangers – Standard – A2 Stainless Steel 100 x 100 to 225 – Box of 10 – 100THS

£146.40 £122.00 Ex VAT

The TIMco Timber Hanger range has been designed as simple solution for various timber to timber connections such as joists and stairwell trimming. They have increased leg lengths so that all widths can take up to a 225mm deep joist. Manufactured from A2 Stainless Steel for ultimate corrosion resistance. Stainless steel must be used where there is corrosive environment and/or the base material has inherent corrosive characteristics e.g. Green Oa

• Conforms to Eurocode 5 and service class 3

9 in stock

SKU: 100THS Categories: ,

Description

  • Pack Type Box
    Pack Qty 10
    Approval BS 5268
    B (mm) 50
    Brand TIMCO
    Corrosion Rating (1-5) 4 – Urban & industrial areas with a moderate salt atmosphere
    Eurocode 5
    Feature 1 Conforms to Eurocode 5 and service class 3
    Joist Size W x H (mm) 100 x 100 to 225
    Leg L (mm) 300
    Material Austenitic Stainless Steel (A2-304)
    Nail Holes (3.75mm) 32
    Pack Dimensions L x W x H (mm) 75 x 100 x 300
    Pack Weight (kg) 0.25
    Safe Working For BS5268 (kN) Long Term 6.43
    Safe Working For BS5268 (kN) Medium Term 7.35
    Safe Working For BS5268 (kN) Short Term 7.72
    Service Class 3
    Thickness (mm) 1
    Type Standard
    W (mm) 100

Additional information

Weight 2.5 kg
